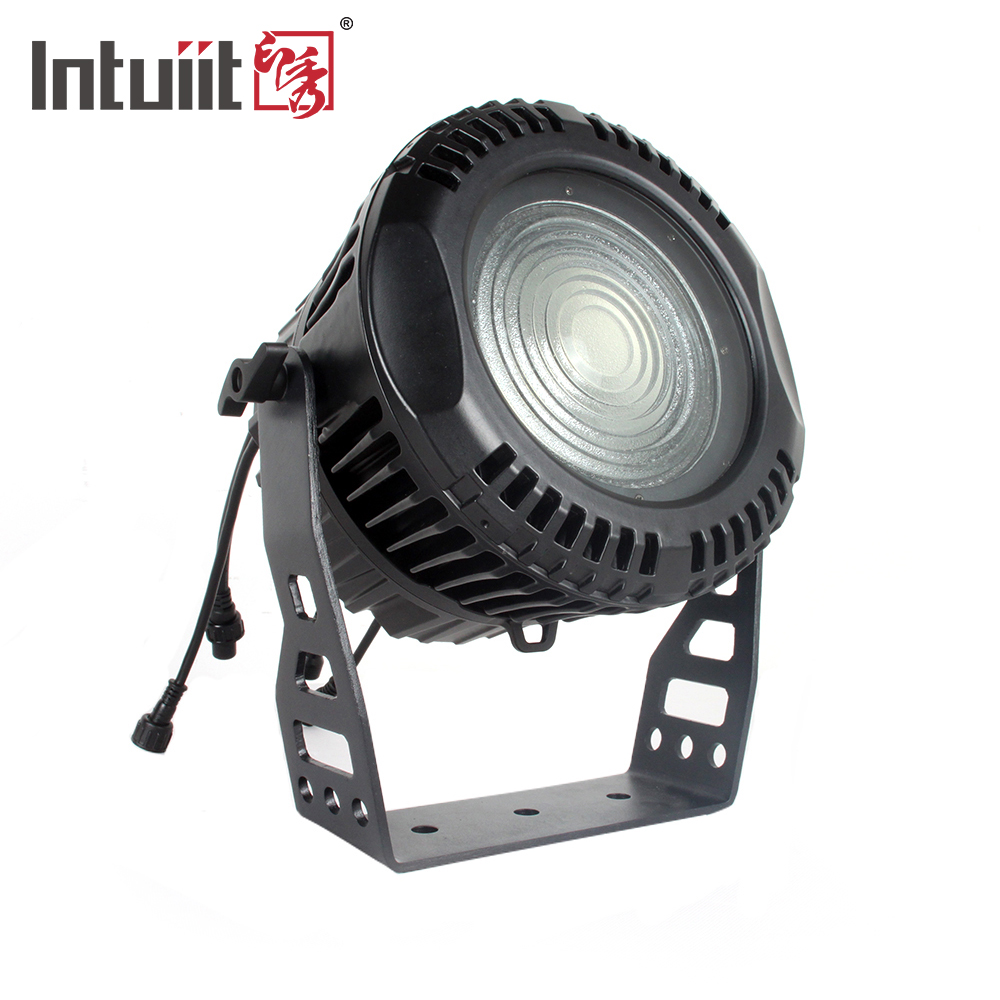

LED outdoor lighting GOOD Dimming DMX512 COB RGBW 120W Stage Parcan
MYLED-058 is the outdoor COB parcan which is 120W RGBW COB LED. There are RGB, WW, CW, UV led types optional. So it could be various applications in outdoor projects.
The Beam angle is 90degree reflector cup. Customers could choose to add a Fresnel len then could change the beam angle to 35degree.
It is zoom parcan that the beam angle could be from 5°~ 55°, 16bit dimming. There are rich modes such as master/slave, built-in problem, auto running, DMX512.
Specification
| Item number | MYLED-058 | |||||
| Product Dimension | 315*180*345mm | |||||
| Inner box | 335*270*420 mm | |||||
| Outer box | 565*440*370mm(2pcs/ctn) | |||||
| Weight | N.W 5.7kg /G.W 6.9kg | |||||
| Connector | DMX in/out,power in/out | |||||
| Power Voltage | AC100V ～ 240V,60/50Hz | |||||
| Power Consumption | 104W | 104W@110V | 102W@240V | Power factor | 0.65 | |
| Current | 1.42A@110V | 0.75 A@240V | ||||
| Power linking | 8pcs@110V | 16pcs@240V | ||||
| LED | 4-IN-1 RGBW | Driver current | 1200mA | |||
| Dimming | 0-100%(13-bit) | Strobe | 0-20Hz | |||
| Beam angle | 35degree | Max Lumen | 4016LM | |||
| DMX channel | 4,6,8CHs | |||||
| IP | IP65 | |||||
| Working Tempreture | -20 ～ +45℃ | |||||
| Lux Sheet | Distance | R(LUX) | G(LUX) | B(LUX) | W(LUX) | ALL(LUX) |
| 1(m) | 1154 | 2666 | 585 | 2977 | 6527 | |
| 2(m) | 311 | 707 | 159 | 792 | 1744 | |
| 3(m) | 148 | 320 | 73 | 357 | 797 | |
| 4(m) | 83 | 190 | 44 | 215 | 473 | |
| 5(m) | 63 | 127 | 29 | 145 | 316 | |
Dimension sheet:
Effect image:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A:Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A:Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
