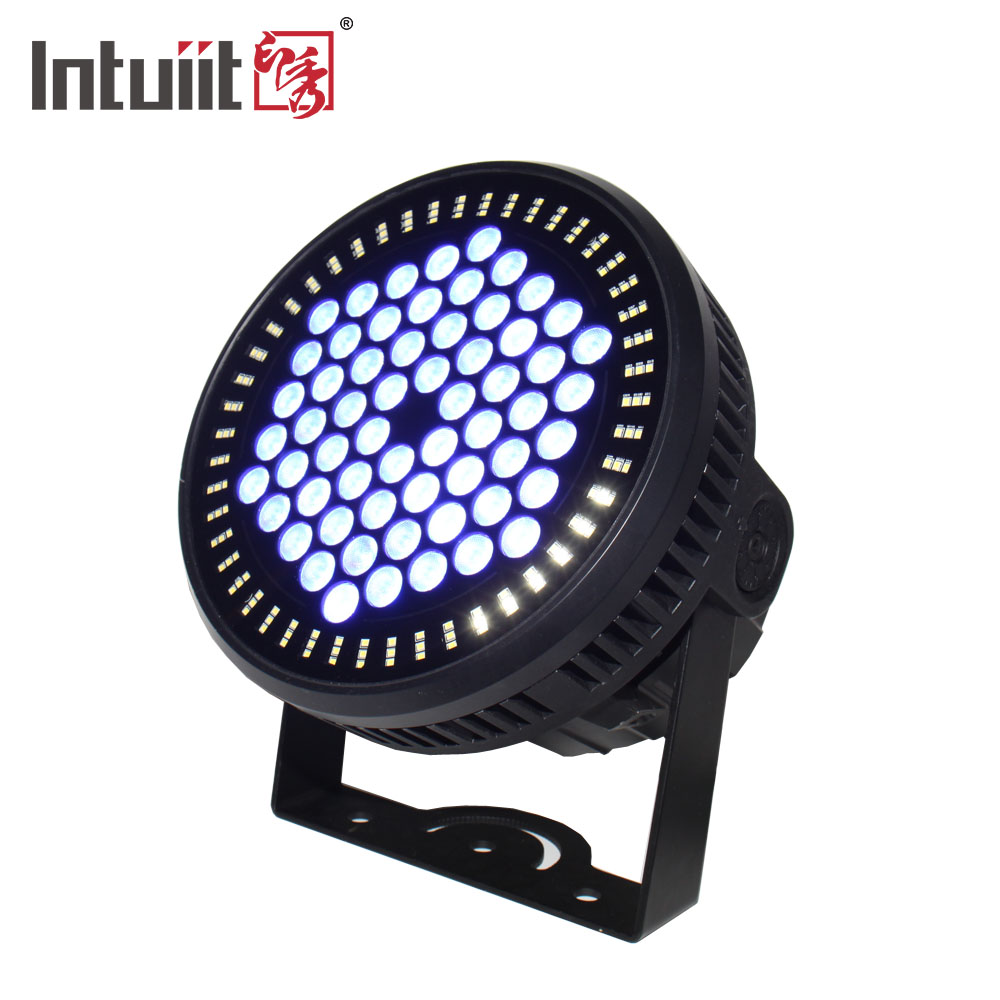

300W 4-in-1 RGBW Wash & Strobe Effect Outdoor Die Casting housing Stage par
MYLED-131 is very powerful LED parcan in the outdoor product line. The main part is RGBW LED, the round line outside is strobe SMD. So it could be Wash&Strobe effect.
The brightness and color mixing are very good. The beam angle is 20 degree which is popular for landscape lighting illumination. The accessories also include the barndoor set. There are rich modes like master/slave, built-in problem, auto running, DMX. The very good performance would earn a lot of benefit for the users.
Our product has CE&Rohs certificates. IP65 waterproof. We had our own stable production line. This item is very good quality outdoor stage par.
Specification
Product name | 300W Outdoor LED Par | ||||||
Item number | MYLED-131 | ||||||
physical property | Product Measurement | 310mm*271mm*200mm | |||||
Inner Packing Size | 375*345*290mm | ||||||
Outer Packing Size | 710*395*315mm | ||||||
Quantity | 2pcs/ctn | ||||||
N.W. | 7.98Kg | ||||||
G.W. | 9.85Kg | ||||||
Housing Material | Die casting Aluminium | ||||||
Color | Black | ||||||
Device Linking | Power In/Out,DMX In/Out | ||||||
Electric Parameters | Input Voltage Range | AC100-240V,60/50HZ | |||||
Max Power | 380W/AC110V | 360W/240V | |||||
Power Factor | 0.998/AC110V | 0.981/A240V | |||||
Input Current | 3.7A/AC110V | 1.5A/AC240V | |||||
Power Linking | 3pcs/AC110V | 8pcs/AC240V | |||||
Optical System | LED Light Source | RGBW | |||||
Drive Current | 500MA | ||||||
Dimming | 0-100% | ||||||
Strobe | 0-20Hz | ||||||
Light Angle | Beam angle | 20° | Spot angle | 45° | |||
Max Lumen | 9602 lm | ||||||
Control | Data Protocol | DMX512 | |||||
DMX Channel | 7/11/18/28/32/39CH | ||||||
Safety | IP Rate | IP65 | |||||
Working Tempreture | -20°~40° | ||||||
Lux | Distance | F | R | G | B | W1 | W1+W2 |
1M | 60000 | 15300 | 24200 | 4152 | 25100 | 25700 | |
2M | 15300 | 4100 | 7400 | 1220 | 7010 | 7430 | |
3M | 6900 | 1830 | 3100 | 555 | 3130 | 3160 | |
4M | 3680 | 960 | 1730 | 320 | 1780 | 1880 | |
5M | 2480 | 691 | 1148 | 216 | 1190 | 1240 |
Dimension sheet
Installation
Effect Images
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
