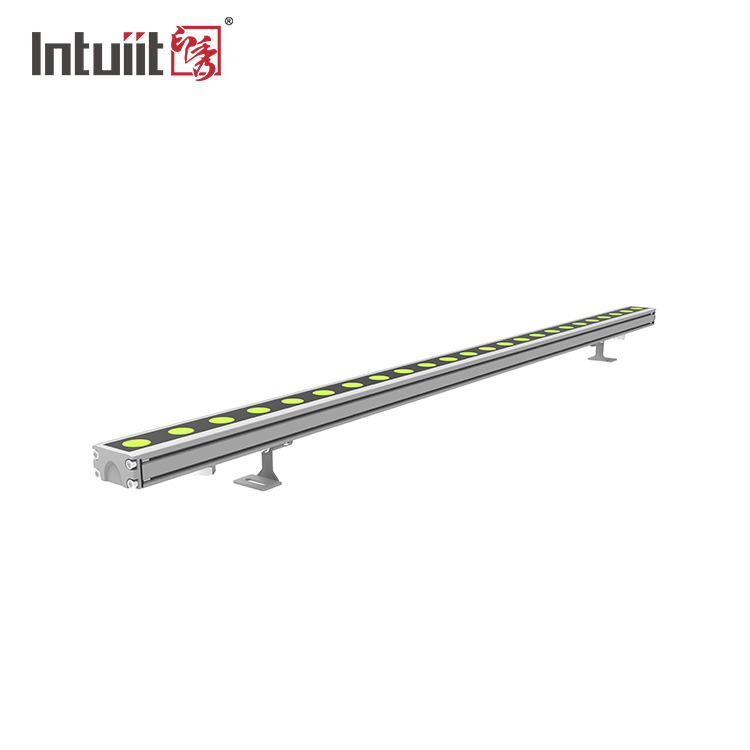

Aluminum waterproof dmx exterior color change DC24V rgbw 4 in 1 led wall washer light
IXQ17C is a powerful waterproof IP65 LED wall washer light, suitable for operation in all-weather conditions. It is small in size, light in weight, able to achieve seamless stitching. It supports DMX512 protocol and RDM function
We have the length of 1m, 0.5m, 0.3m optional for project use.With flexible section control function, it is possible to realize colorful pixel effect for the hotels, shopping malls, buildings, square landscapes, municipals, bridges, and other outdoor landscape lighting projects to provide new lighting solutions.
1. Specification
Item Number | IXQ17C31(1M) | IXQ17C16(1M) | IXQ17C17(1M) | IXQ17C20(1M) | IXQ17C47(1M) |
LED Qty | 24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M) | 16pcs(1M) | |||
Beam Angle | 20°/30°/40°/20*40°Optional | ||||
Spot Angle | 40°/50°/75°/45*75°Optional | ||||
Lumen | 2260lm / 1116lm / 710lm | 1050lm / 650lm / 318lm | 1240lm / 610lm / 430lm | 1240lm | |
CRI | Ra≥70 | / | / | / | |
Color Tempreture | 2700∽6000K Optional | RGB | RGBW(W:3000 / 4000 / 6000K Optional) | ||
Product Measurement | 1000*47*63MM(1M) / 510*47*63MM(0.5M) / 300*47*63MM(0.3M) | ||||
N.W. | 1.9kg(1M) / 1.2kg(0.5M) / 0.8kg(0.3M) | ||||
Input Voltage Range | DC24V | ||||
Watts | 36W(1M) / 18W(0.5M) / 9W(0.3M) | ||||
Power Factor | ＞0.9 | ||||
Housing Material | Tensile Aluminum + die-cast aluminium | ||||
Color | Matt black / Grey | ||||
Cooling | Natural convection cooling | ||||
Control Protocol | ON/OFF | DMX512 | DMX512 | DMX512 | DMX512-RDM |
Segmented Control | / | 4Section(1M)/2 Section(0.5M)/1Section(0.3M) | 4 Section(1M) | ||
Channel | / | 4 / 6 / 7 / 16 CH | |||
Power /Installation | Independent | ||||
Conection | 2pin rubber cable:input/output | black rubber cable 5 Pin In & Out | |||
Power Linking | 5pcs(1m) / 8pcs(0.5m) / 12pcs(0.3m) | ||||
DMX Linking | / | 32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M) | |||
Certification | CE,RoHS | ||||
IP Grade | IP65 | ||||
2. Effect show
3. FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the fault?
A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:
during the guarantee period, we will send new spare parts for
replacement. For defective batch products, we can discuss with the real
situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
