5×30W RGBW 4 In 1 LED Moving Head DMX Stage Light │ XY-021A

  • Category:Moving Head Light
  • Introduction:High brightness moving head beam bar 5*30W RGBW 4-in-1 LED Stage light
  • Hotline: +86-20-66805884
  • Details

  • Contact Us

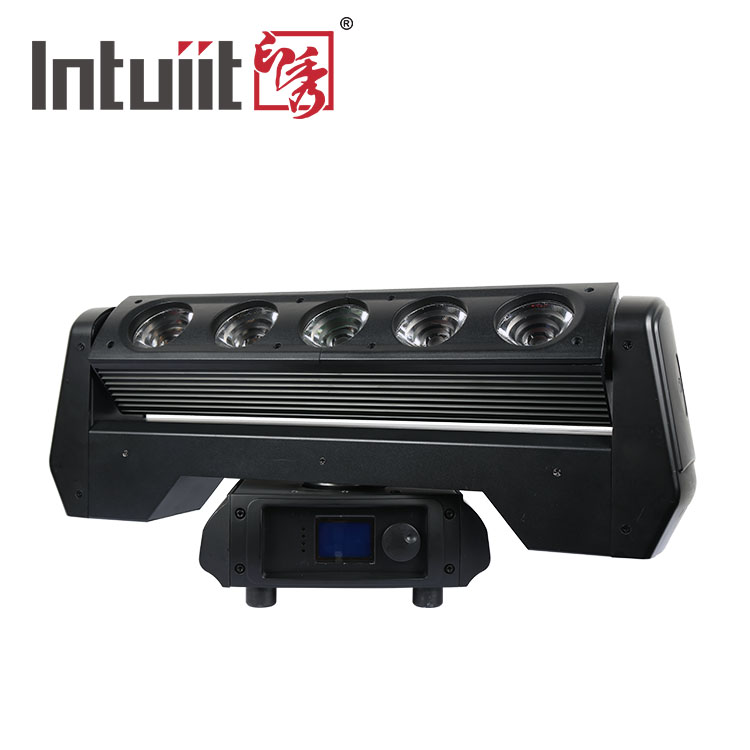

High brightness moving head beam bar 5*30W RGBW 4-in-1 LED Stage light

XY-021A is high brightness moving head beam bar,featuring 5Pcs*30W OSRAM RGBW 4-in-1 LED, total 230W, beam angle 4.5 by our private optical lens, very narrow beam effect, excellent color mixing, and super brightness; advanced high efficiency low noise cooling and movement control systems, pan infinite rotation, Tilt 270°, rich color effects, linear dimming and selectable dimming curves system. DMX control, 3Pin or 5pin DMX, PowerCon in & Out connection,and a multi-voltage universal auto switching power supply (AC100-240V). suitable for bars, clubs, stage performance,and all kinds of events.


Technical Data

 Item No. XY-021A
 Light Source 5Pcs*30W OSRAM RGBW 4-in-1 LED
 Max. Power 230W
 Work voltage AC100-240V, 50-60Hz
 Control Protocol DMX512
 DMX Channels  9,17,29,37CH
 Pan/Tilt  Pan Infinite, Tilt 270o
 Lumen 7677lm
 Dimming 16bit
 Cooling Tensile aluminum alloy+Fan
 IP Grade IP20
 Product's Dimension 590*150*257MM
 Net Weight 8KG

Light Distribution Data


Product's Dimension


Installation Diagram


Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable


Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days


Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
