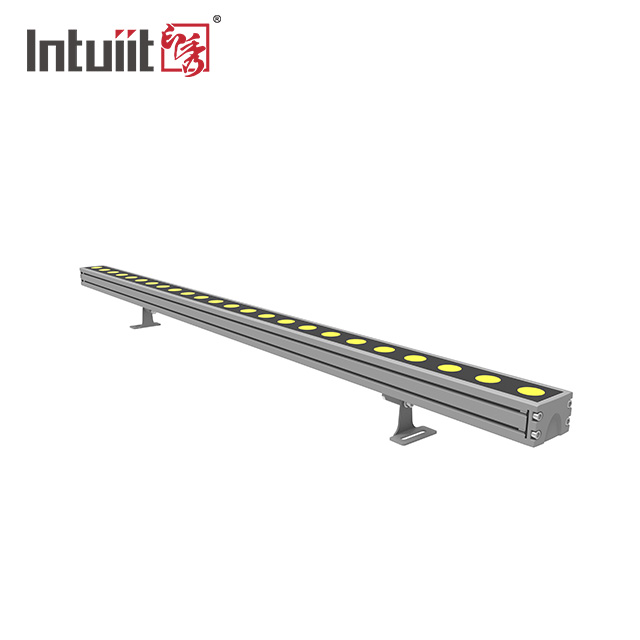

Architectural Landscape Lighting DMX RGBW External Wall Washer Lights

  • Category:LED Landscape Wall Washer
  • Introduction:architectural landscape lighting dmx rgbw 1m 0.5m 0.5cm led wall washer linear light with rdm function
  • Hotline: +86-20-66805884
  • Email:jenny@topledlighting.com
  • Details

  • Contact Us


architectural landscape lighting dmx rgbw 1m 0.5m 0.5cm led wall washer linear light with rdm function



IXQ18B is a good color mixing waterproof IP65 led light bar, 1800K-6500k,RGB, RGBW led optional, suitable for operation in all-weather conditions. It is small in size, light in weight, able to achieve seamless stitching. It supports DMX512 protocol and RDM function



It has the length of 1m, 0.5m, 0.3m optional for project use.With flexible section control function, it is possible to realize colorful pixel effect for the hotels, shopping malls, buildings, square landscapes, municipals, bridges, and other outdoor architetural lighting projects to provide new lighting solutions.



Specification:

Item Number

IXQ18B01(1M)
IXQ18B09(0.5M)
IXQ18B10(0.3M)

IXQ18B03(1M)
IXQ18B11(0.5M)
IXQ18B12(0.3M)

IXQ18B05(1M)
IXQ18B13(0.5M)
IXQ18B14(0.3M)

IXQ18B07(1M)
IXQ18B15(0.5M)
IXQ18B16(0.3M)

IXQ18B17(1M)

LED Qty

24pcs(1M)/12pcs(0.5M)/6pcs(0.3M)

16pcs(1M)/8pcs(0.5M)/4pcs(0.3M)

16pcs(1M)

Beam Angle

20°/30°/40°/20*40°/60°Optional

Spot Angle

40°/50°/75°/45*75°/100°Optional

Lumen

3750lm/1860lm/815lm

1395lm/865lm/450lm

1835lm/1085lm /550lm

1652lm

CRI

Ra≥70

/

/

/

Color Tempreture

2700∽6000K Optional

RGB

RGBW(W:3000/4000/6000K Optional)

Product Measurement

1000*52*80MM(1M)/510*52*80MM(0.5M)/300*52*80MM(0.3M)

N.W.

2.5kg(1M)/1.6kg(0.5M)/1.2kg(0.3M)

Input Voltage Range

DC24V

Watts

48W(1M)/24W(0.5M)/12W(0.3M)

Power Factor

>0.9

Housing Material

Tensile Aluminum + die-cast aluminium

Color

Matt black / Grey

Cooling

Natural convection cooling

Control Protocol

ON/OFF

DMX512

DMX512

DMX512

DMX512-RDM

Segmented Control

/

4Section(1M)/2 Section(0.5M)/1Section(0.3M)

4 Section(1M)

Channel

/

4/6/7/16 CH

Power /Installation

Independent

Conection

3pin rubber cable:

input/output

black rubber cable 5 Pin In & Out

Power Linking

3cs(1m)/6pcs(0.5m)/12pcs(0.3m)

DMX Linking

/

32pcs(1M)/64pcs(0.5M)/128pcs(0.3M)

Certification

CE, RoHS

IP Grade

IP65



IXQ17C - 07()



FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 5~15 days, mass production time needs 25~35days

Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.

Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the fault?
A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly: during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
