Intuiit LCD display 8 DMX512 port extents controller for stage, landscape lighting
KZ-002A is a DMX signal converter based on data communication of network based on art-net protocol, which can receive network DMX data.

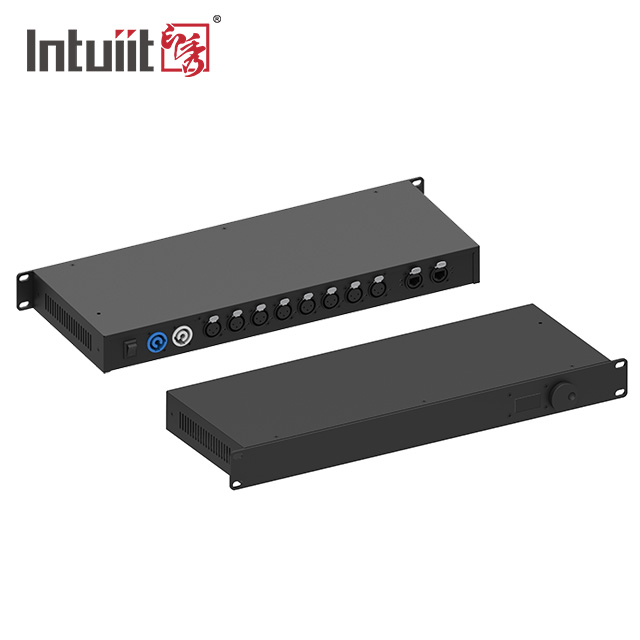

KZ-002A is designed as a standard 1U cabinet structure for easy installation in the standard control cabinet. With LCD display, the setting operation is convenient and intuitive. KZ-002A provides 8 standard DMX512 data output ports and 8*512 data output ports. Different network segments can be set up to avoid the interference of multiple sets of art-net data in the same network.
KZ-002A is compatible with the lighting software with the Art-net protocol. The output can control the stage lighting and LED lighting at the same time.
1. Specification & main function
ArtNet Convertor 8 Outputs | |
Technical data | |
Item No. | KZ-002-A |
Work Voltage | AC 100-240V, 50-60Hz |
Max. Power | 7.5W |
Control Protocol | DMX 512 / Artnet / RDM / sCAN |
Dvice Linking | Power in / out, Artnet in / out |
DMX in & Outputs | 8 XLR 3-pin / 5pin female |
Standard size | 19" / 1 U, 483x169x49mm |
Net Weight | 2 Kg |
IP Rate | IP20 |
Main Functions | |
◆ Bidirectional ArtNet Convertor | |
◆ Supports 2 Inputs and 8 Outputs | |
◆ Work Mode switch function: 1-in-8, or 2-in-4 | |
◆ Configure via integrated display | |
◆ Adjustable DMX repetition rate (10-40 Hz) | |
◆ 4096 Channels / 8 DMX universes | |
◆ Convert either Art-Net to DMX or DMX to Art-Net | |
◆ LEDs indicator to show work status | |
◆ Support protocols: DMX, RDM, Art-Net, sACN |
2. Application:
3. FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the fault?
A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly: during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
