DMX512 Control Good Color Mixing LED COB Stage Par light 60W RGBW │ MYLED-056C

  • Category:Stage LED Par
  • Introduction:DMX512 Control Good Color Mixing LED COB Stage Par light 60W RGBW
  • Hotline: +86-20-66805884
  • Email:jenny@topledlighting.com
  • Details

  • Contact Us

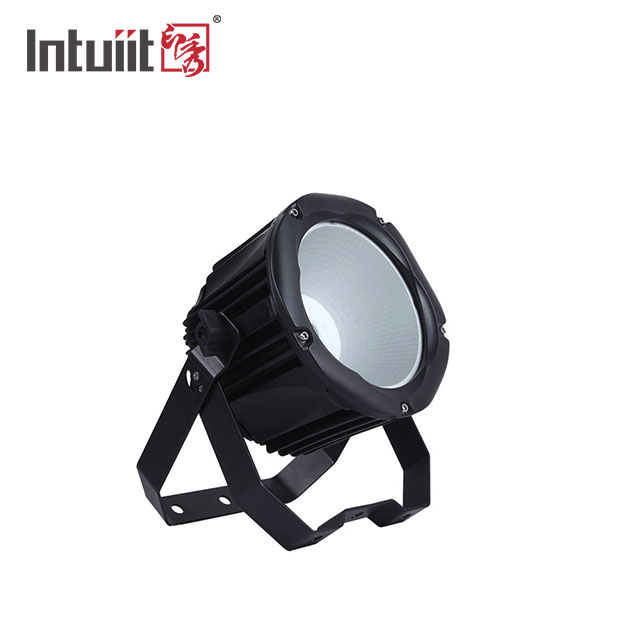

DMX512 Control Good Color Mixing LED COB Stage Par light 60W RGBW



MYLED-056C is a 60W RGBW COB stage par light. There are RGB, WW, CW, UV led types optional

With both 3pin&5pin DMX in&out, Seetronic power con in&out, it is the product which is more for professional stage or event.



The Beam angle is 90degree reflector cup. Customers could choose to add a Fresnel len then could change the beam angle to 35degree. Consider the brightness, it is better to use the item within 5 meter distance.



It include the rich modes like master/slave, sound, built-in problem, auto running, DMX. The very good performance would earn a lot of benefit for the users.


Specification

Item numberMYLED-056C
Product Dimension279*330*162mm
Inner box315*240*390 mm
Outer box655*505*350mm(4pcs/ctn)
WeightN.W 3.8kg /G.W 5.2kg
ConnectorDMX in/out,power in/out
Power VoltageAC100V ~ 240V,60/50Hz
Power Consumption63W60W@110V63W@240VPower factor0.65
Power linking8pcs@110V14pcs@240V
LED4-IN-1 RGBW

Dimming0-100%(13-bit)Strobe0-20Hz
Beam angle120degree

DMX channel3,6,7CHs
IPIP20
Working Tempreture-20 ~ +45℃


Dimension sheet

DMX512 Control Good Color Mixing LED COB Stage Par light 60W RGBW 0

Effect image

DMX512 Control Good Color Mixing LED COB Stage Par light 60W RGBW 1





FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable



Q2. What about the lead time?
A:Sample needs 5~15 days, mass production time needs 25~35days


Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A:Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
