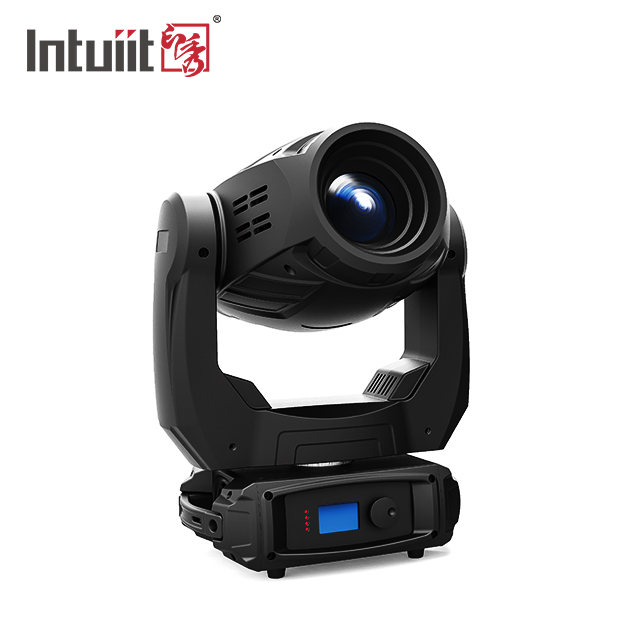

Electronic Focus 150W LED Moving Head Spot Light │ XY-150SPOT

  • Category:Moving Head Light
  • Introduction:High brightness LED Stage light 150W Spot Moving head with rich image effect
  • Hotline: +86-20-66805884
  • Email:jenny@topledlighting.com
  • Details

  • Contact Us



High brightness LED Stage light 150W Spot Moving head with rich image effect



XY-150Spot is a new item in our product line, the design is for a variety of applications requiring rich effects and powerful multi-purpose luminaire. It used 150W White LED as the light source, with 16Degree beam angle,more than 8200lm output. This fixture has one fixed gobo wheel, and one rotation gobo wheel, each include 7+1 gobos, and featured electronic focus, triple prism, Iris functions.with both 3pin&5pin DMX in&out, Seetronic power con in&out, the connection of the moving head is convenient and easy.



Technical Data

 Item No. XY-150SPOT
 Light Source 150W White LED
 Max. Power 237W
 Input voltage  AC110V-240V, 50-60Hz
 Beam angle 16degree
 Control Protocol DMX-512
 DMX Channels 13,16CH
 Fixed gobo 7+1 Gobos
 Rotation gobo 7+1 Gobos
 Color wheel 7 colors+white
 Other features Electronic focus, Triple Prism, Iris
 Pan/Tilt Pan:540Degree, Tilt:270Degree
 IP Grade IP20
 Dimension 562*282*444mm
 Net weight 13.3KG



Light Distriution Data



Product's Dimension



Installation Diagram



FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable


Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days


Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".


Keywords:Stage light,moving head light,home party,mini moving head light,street light,flood light
