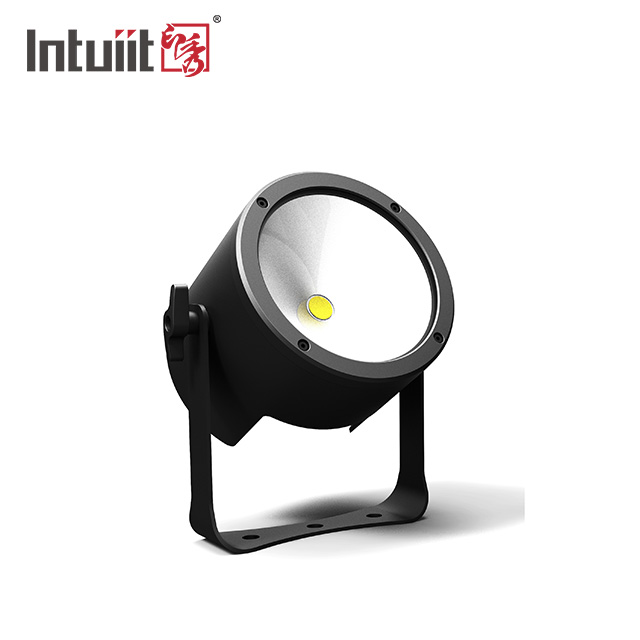

High Saturated Color Compact design 60W COB RGBW LED stage Parcan
COB par has lots of application in entertainment or Events. YX-021 is 60W RGBW COB LED. It is 70degree and customer could change the beam angle to 35°after add the Fresnel len. The housing is private plastic one which is compact and light.
There are rich modes such as master/slave, sound, built-in problem, auto running, DMX. It is very hot sale in stage market.
Specification
| Item number | YX-021 | |||||
| Product Dimension | 228*175*239 mm | |||||
| Inner box | 310*275*230 mm | |||||
| Outer box | 575*335*495 mm(4pcs/ctn) | |||||
| Weight | N.W 2.1kg /G.W 9.6kg | |||||
| Connector | DMX in/out,power in/out | |||||
| Power Voltage | AC100V ～ 240V,60/50Hz | |||||
| Power Consumption | 60W | 65W@110V | 63W@240V | Power factor | 1 | |
| Current | 0.66A@110V | 0.28 A@240V | ||||
| Power linking | 19pcs@110V | 46pcs@240V | ||||
| LED | 4-IN-1 RGBW | Driver current | 400mA | |||
| Dimming | 0-100%(14-bit) | Strobe | 0-20Hz | |||
| Beam angle | 69degree | Max Lumen | 1862LM | |||
| DMX channel | 4,6,11CHs | |||||
| IP | IP20 | |||||
| Working Tempreture | -20 ～ +45℃ | |||||
| Lux Sheet | Distance | R(LUX) | G(LUX) | B(LUX) | W(LUX) | ALL(LUX) |
| 1(m) | 250 | 424 | 93 | 458 | 1131 | |
| 2(m) | 66 | 1.4 | 25 | 121 | 390 | |
| 3(m) | 32 | 57 | 14 | 60 | 140 | |
| 4(m) | 20 | 26 | 9 | 38 | 88 | |
| 5(m) | 15 | 25 | 6 | 27 | 62 | |
Dimension sheet
Accessories
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
