LED Matrix Moving Head Stage Light │ XY-006

  • Category:Moving Head Light
  • Introduction:Pixel beam moving head light 3*3 RGBW LED Matrix moving light for stage use
  • Hotline: +86-20-66805884
  • Details

  • Contact Us

Pixel beam moving head light 3*3 RGBW LED Matrix moving light for stage use


XY-006 is Matrix 3x3 LED compact moving head beam effect light,featuring 9Pcs*10W RGBW 4-in-1 LED, total 115W, beam angle 8°, advanced high efficiency low noise cooling and movement control systems, RGBW pixel control, pan and tilt infinite rotation, rich color effects, linear dimming and selectable dimming curves system. DMX control, 3Pin or 5pin DMX, PowerCon in & Out connection,and a multi-voltage universal auto switching power supply (AC100-240V). light weight, suitable for bars, stage performance,and all kinds of events.


Technical Data

 Item No. XY-006
 Light Source 9Pcs*10W RGBW 4-in-1 LED
 Max. Power 115W
 Work voltage AC100-240V, 50/60Hz
 Beam angle 8°
 Lumen 1265lm
 Dimming 16bit
 Control protocol DMX512
 DMX Channes 9,16,39,44CH
 Pan/Tilt Pan infinite, Tilt infinite rotation
 IP Grade IP20
 Dimension 338*157*349mm
 Net weight 6.5KG

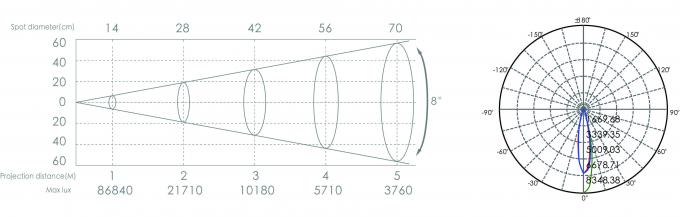

Light Distribution Data

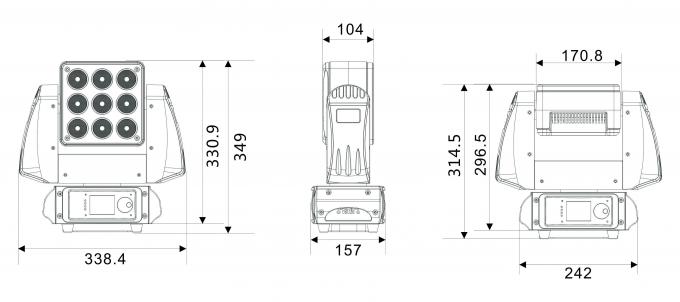

Product's Dimension

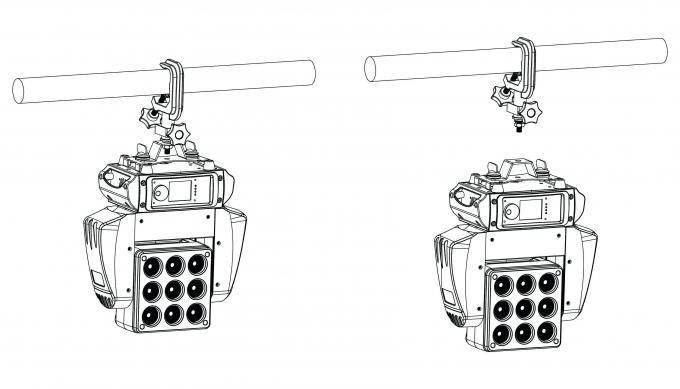

Installation Diagram


Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable


Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days


Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
