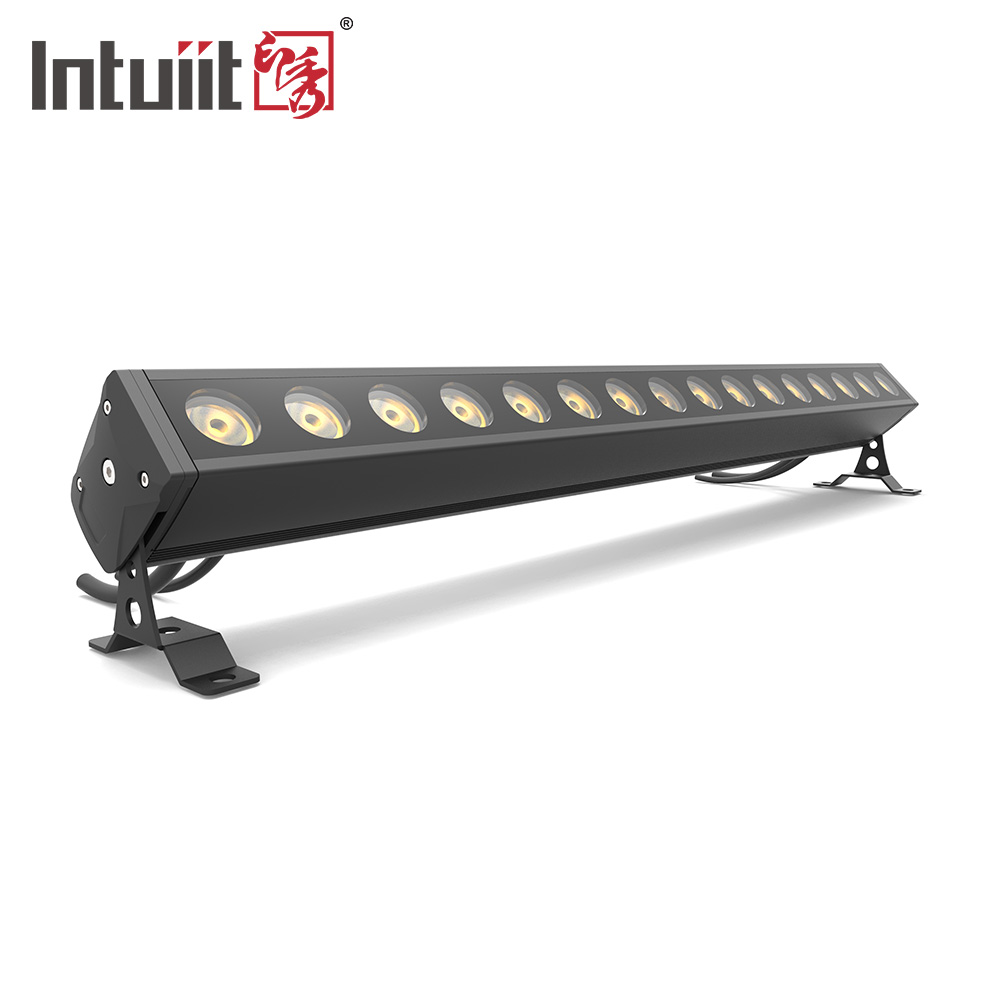

LED Wall Wash Bar | TPL-128

  • Category:Stage LED Light Bar
  • Introduction:TPL-128 is IP65 rated Stage LED Light Bar, die-casting aluminum private tooling housing, very nice design, used 16Pcs*5W RGBW 4-in-1 LEDs, 20Degree and 40Degree beam angles for optional, OLED display with 4 touch buttons control panel, this stage led light bar with excellent color mixing, very smooth 16bit dimming. It can be applied in stage, studio, bars, as well as outdoor projects.
  • Hotline: +86-20-66805884
  • Email:jenny@topledlighting.com
  • Details

  • Contact Us


Specifications:

Item No.

TPL-128

Optical System

Light Source

16Pcs*5W RGBW 4-in-1 LED

Beam Angle

20o/ 40°

Dimming

0-100% 16bit dimming

Electrical Parameters

Input Voltage

AC100-240V,50-60Hz

Max. Power

80W

Power Factor

0.578 @100V, 0.532 @240V

Input Current

1.284A @100V, 0.579A @240V

Power Cascade

5Pcs@100V, 10Pcs@240V

Physical Properties

Dimension

1008×145×145mm

N.W.

6.2KG

Housing

Tensile Aluminum

Color

Black

Control

Control Protocol

DMX512

DMX Channels

4CH,6CH,9CH

Cooling

Natural convection cooling

Safety

Working temperature

-20~45

IP Grade

IP65

Approval

CE & RoHS

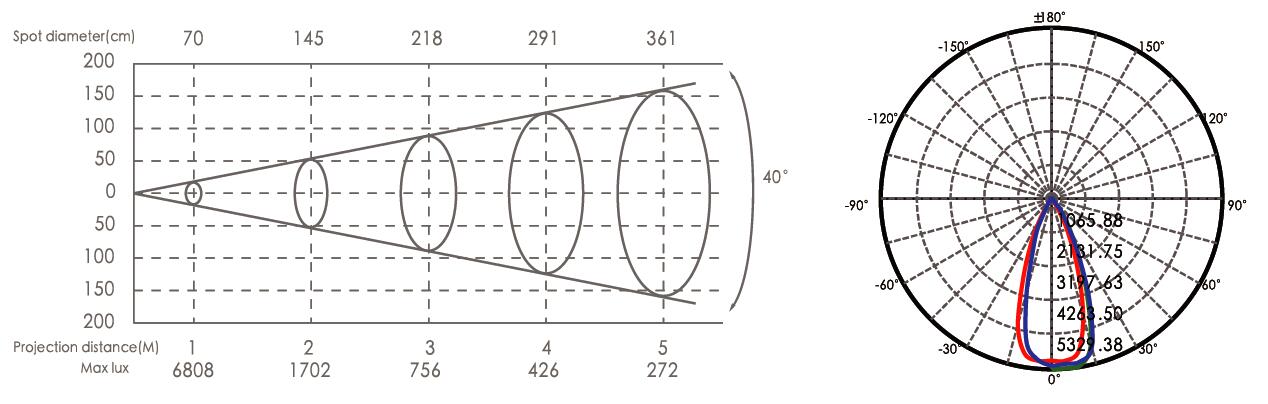

Optical Data:

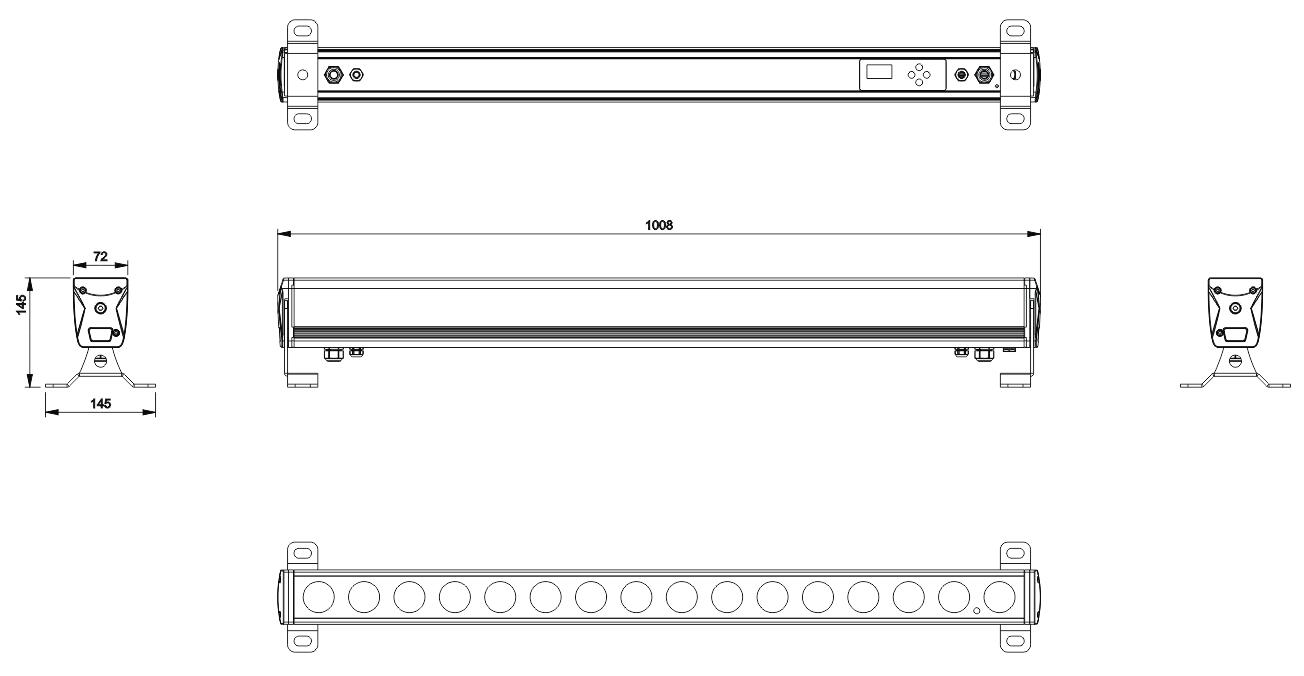

Dimension

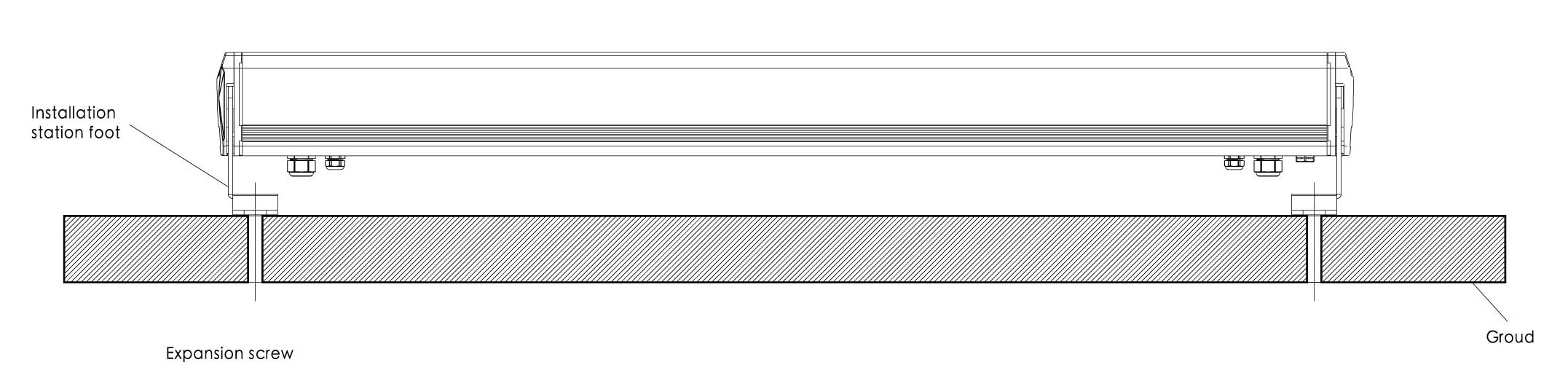

Installation:
