Pixel Control 14×10W RGBW 4 In 1 LED Stage Lighting Bars │ CT-002P

  • Category:Stage LED Light Bar
  • Introduction:Stage LED Light Bar Pixel control 14Pcs*10W RGBW 4-in-1 LED bar IP65 for outdoor use
  • Hotline: +86-20-66805884
  • Details

  • Contact Us

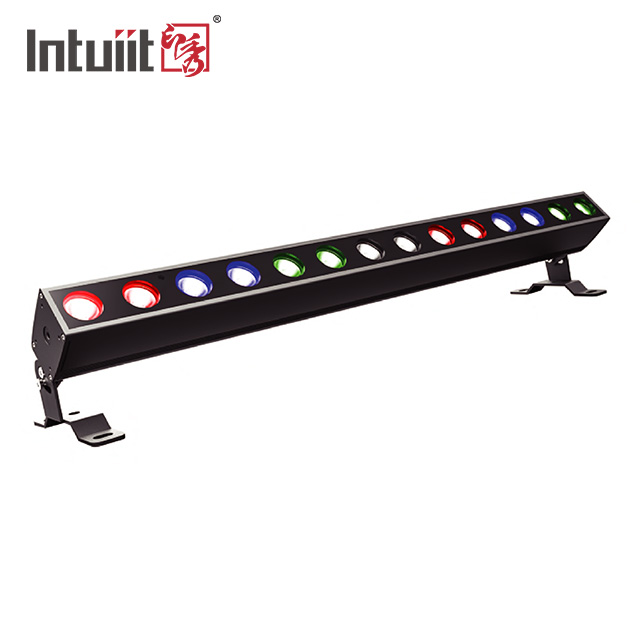

Stage LED Light Bar Pixel control 14Pcs*10W RGBW 4-in-1 LED bar IP65 for outdoor use


CT-002P is IP65 rated Stage LED Light Bar, die-casting aluminum private tooling housing, very nice design, used 14cs*10W RGBW 4-in-1 LEDs, 20Degree, 40Degree and 20*40Degree beam angles for optional, Pixel control,OLED display with 4 touch buttons control panel, this stage led light bar with excellent color mixing, very smooth 16bit dimming. Very suitable for all kinds of stage and outdoor lighting projects.


Technical Data

 Item No. CT-002P
 Light Source 14Pcs*10W RGBW 4-in-1 LED
 Max. Power 85W
 Work voltage AC100-240V,50-60Hz
 Beam angle 20Degree, 20*40Degree
 Luminous flux 1087lm
 Control Protocal DMX512, RDM
 DMX Channels 4,6,8,56CH
 IP Grade IP65
 Certificate CE&RoHS
 Product's dimension 978*141*179MM
 Net Weight 6.2kg

Light Distribution Data

Product's Dimension

Installation Diagram


Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable


Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days


Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
