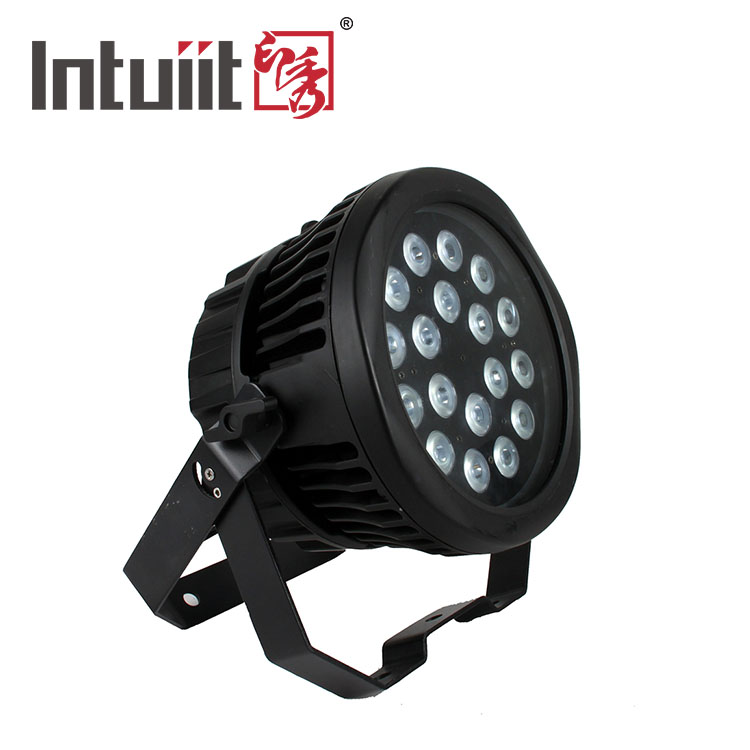

Private Tooling LED parcan stage light 120W 6-in-1 RGBWAUV with Best Color Mixing
MYLED-111A is a die casting stage par which is private tooling design. There is no fan cooling which is very quite operation. LED is 6-in-1 RGBWAUV with 30 degree len that could make very good color mixing.
There are rich modes such as master/slave, sound, built-in problem, auto running, DMX. It is very professional item for stage or event.
Specification
| Item number | MYLED-111A | |||||
| Product Dimension | 345x321x197 mm | |||||
| Inner box | 335x270x420mm | |||||
| Outer box | 565x440x370mm(2pcs/ctn) | |||||
| Weight | N.W 6.4kg /G.W 7.36kg | |||||
| Connector | DMX in/out,power in/out | |||||
| Power Voltage | AC100V ～ 240V,60/50Hz | |||||
| Power Consumption | 120W | 127W@110V | 127W@240V | Power factor | 0.517 | |
| Current | 2.2 A@110V | 1.15 A@240V | ||||
| Power linking | 6pcs@110V | 11pcs@240V | ||||
| LED | 6-IN-1 RGBWAUV | Driver current | ||||
| Dimming | 0-100%(14-bit) | Strobe | 0-20Hz | |||
| Beam angle | 28degree | Max Lumen | 4531LM | |||
| DMX channel | 6,8,10CHs | |||||
| IP | IP65 | |||||
| Working Tempreture | -10 ～ +40℃ | |||||
| Lux Sheet | Distance | R(LUX) | G(LUX) | B(LUX) | W(LUX) | ALL(LUX) |
| 1(m) | 1957 | 3841 | 890 | 6104 | 13390 | |
| 2(m) | 486 | 971 | 216 | 1488 | 3297 | |
| 3(m) | 219 | 436 | 98 | 673 | 1495 | |
| 4(m) | 121 | 247 | 55 | 372 | 833 | |
| 5(m) | 79 | 161 | 36 | 245 | 552 | |

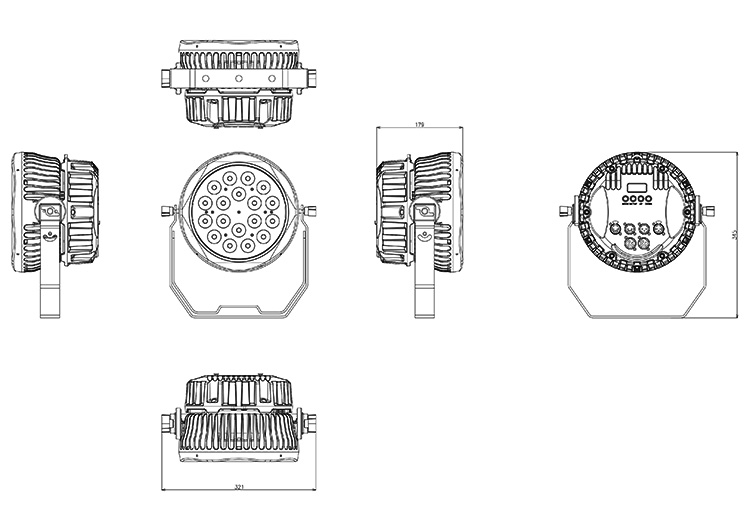

Dimension sheet
Effect Images
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A:Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A:Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
