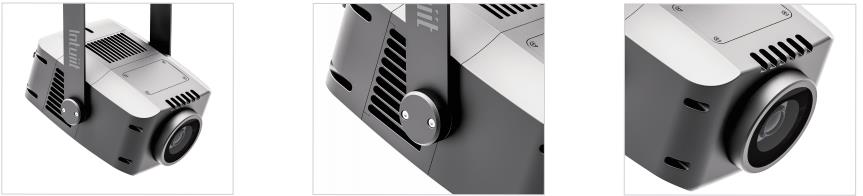

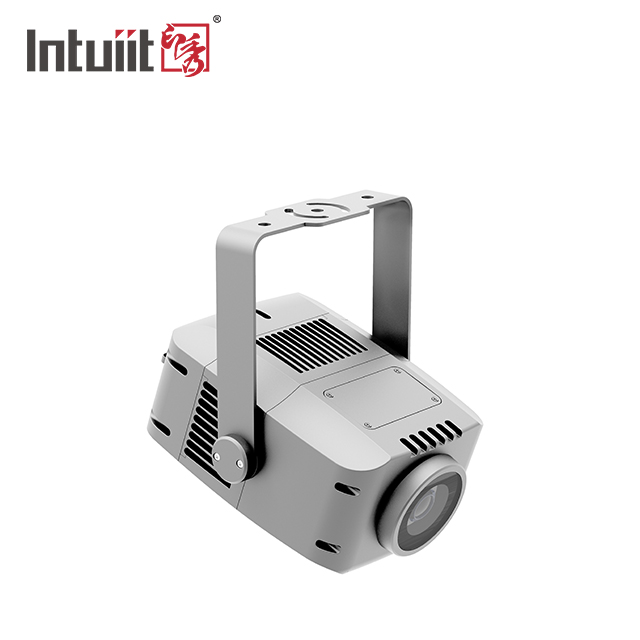

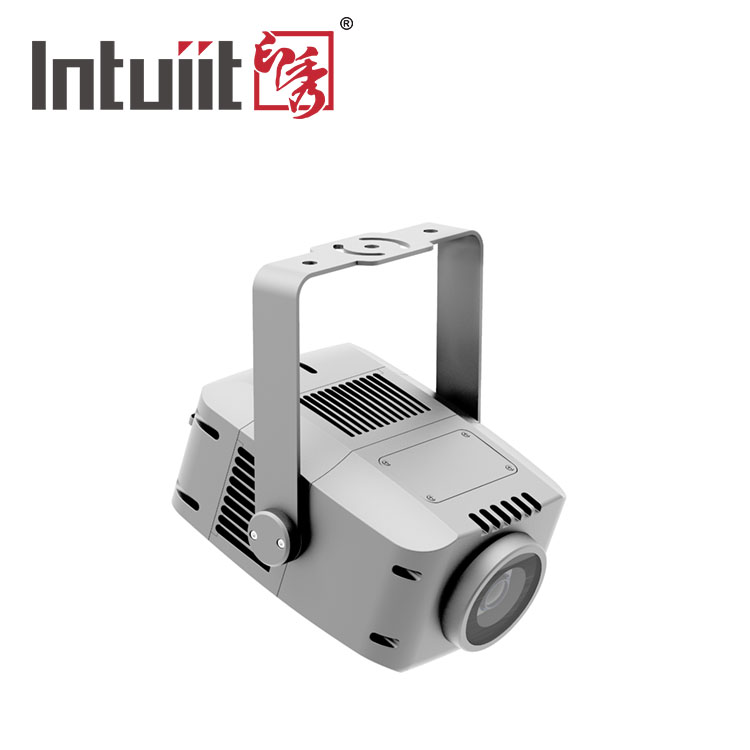

100W white LED outdoor IP65 gobo projector light
Color wheel and Gobo wheel can be transformed easily.
Very smooth Dimming gray transformation.
Gobo can be switched flexibly, accurate rotation and positioning, with clear Logo imaging.
Support DMX512 and RDM bidirectional protocol.

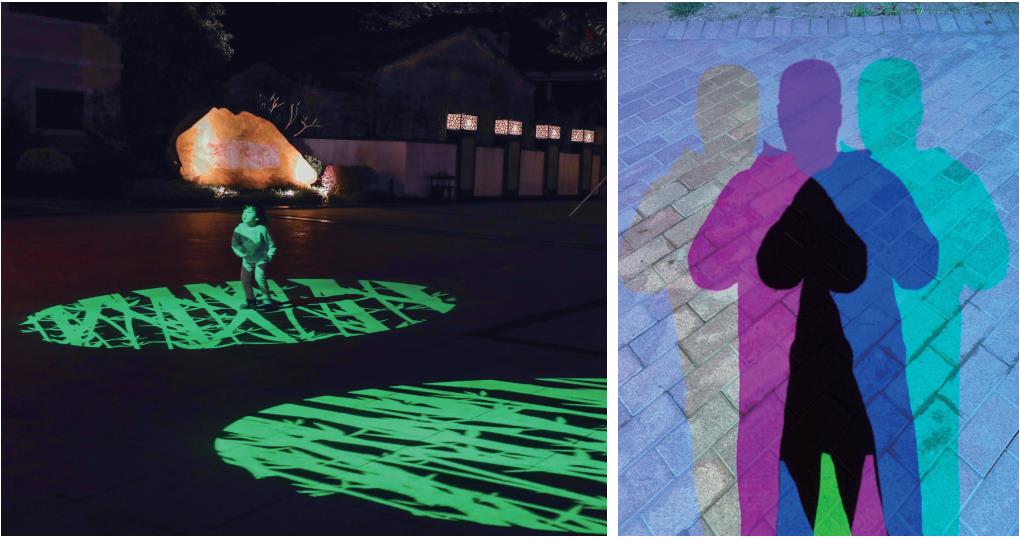

Professional for the cultural tourism market, theme park, night view of distinctive town, live-action performance, bridge piers etc.
LED | Imported 90W white light group | IP Grade | IP65 |
CCT | 8000K | Focus | Electronic |
Lumen | 2300lm | Dimensions | 398x273x165mm |

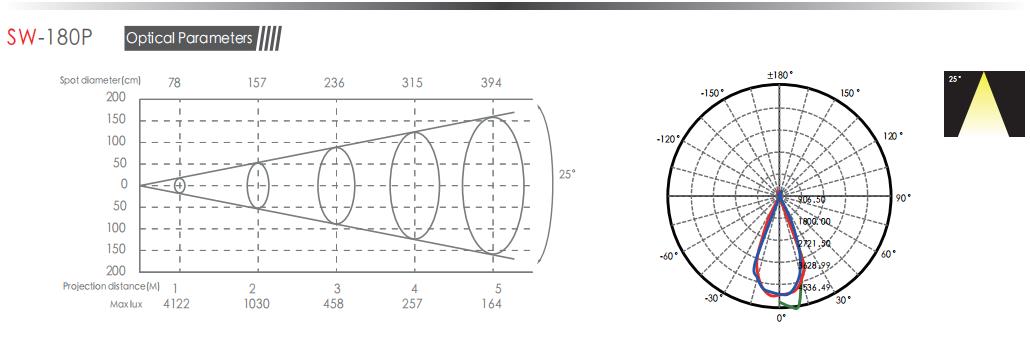

Beam angle | 2 5° ,5 5° | N.W. | 9 KG |
Input voltage | AC100-240V,50-60 Hz | Housing material | Magnesuim-aluminium alloy |
Power | 100W | Housing color | gray / black |
Drive current | 6.3A | Power cable | black rubber cable 3 Pin In & Out |
Dimming | 16Bit | DMX cable | Cement black rubber cable 2 Pin In & Out |
Cooling | Convection + Fan cooling | Electrical safety class | I |
Control protocol | DMX512、RDM | EMC | EMC, EMI |
DMX channel | 7 CH，8 CH | Permitted Ambient Temperature | -20 ～ +4 5℃ |
Function | Gobo can be switched flexibly, accurate rotation and positioning , with clear Logo imaging | Color | Carmine, Green, Blue, Buff, Light blue, Sky blue, Orange-red |
Rotation Gobo | 1 (7+1 Auto-rotating Gobo, can be shaking, rotated forward and backward, Gobo can be customized) | ||
Enquiry：Projector lighting SW-180P
