Projector lighting SW-200P

  • Category:Projector lighting
  • Introduction:200W outdoor waterproof led gobo light
  • Hotline: +86-20-66805884
  • Email:jenny@topledlighting.com
  • Details

  • Contact Us

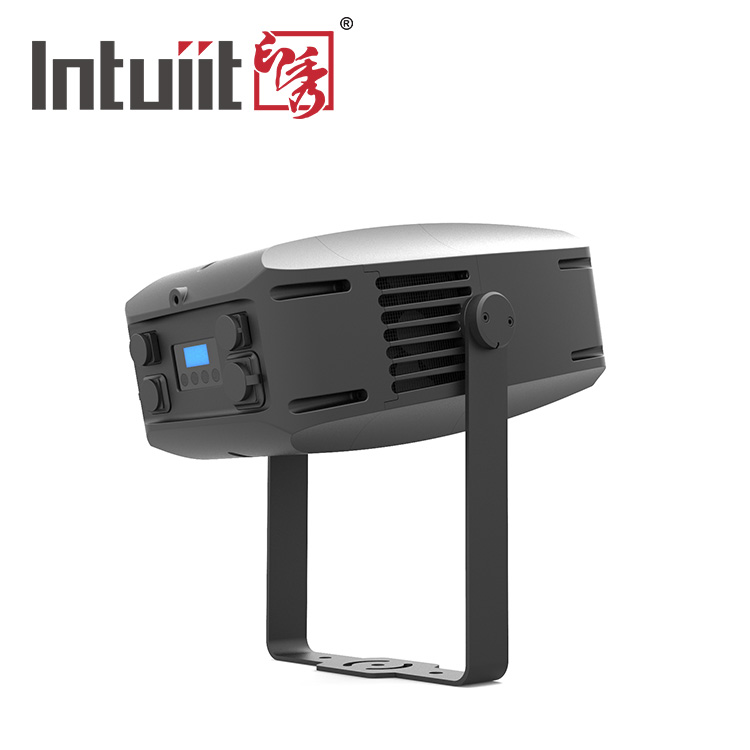

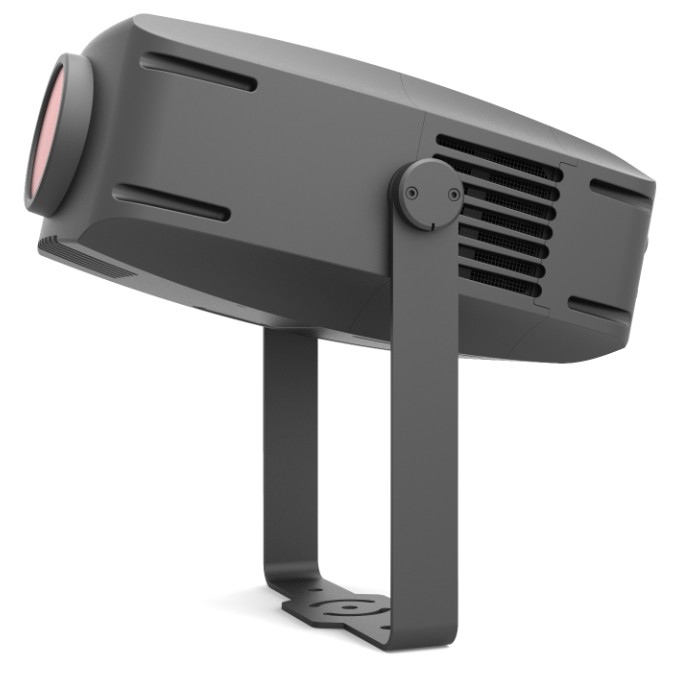

200W outdoor waterproof led gobo light


Color wheel, fixed gobo wheel, rotating gobo wheel, prism and atomization effect can be transformed easily.

Very smooth Dimming gray transformation.

Gobo can be switched flexibly, accurate rotation and positioning, with clear Logo imaging.

Support DMX512 and RDM bidirectional protocol.

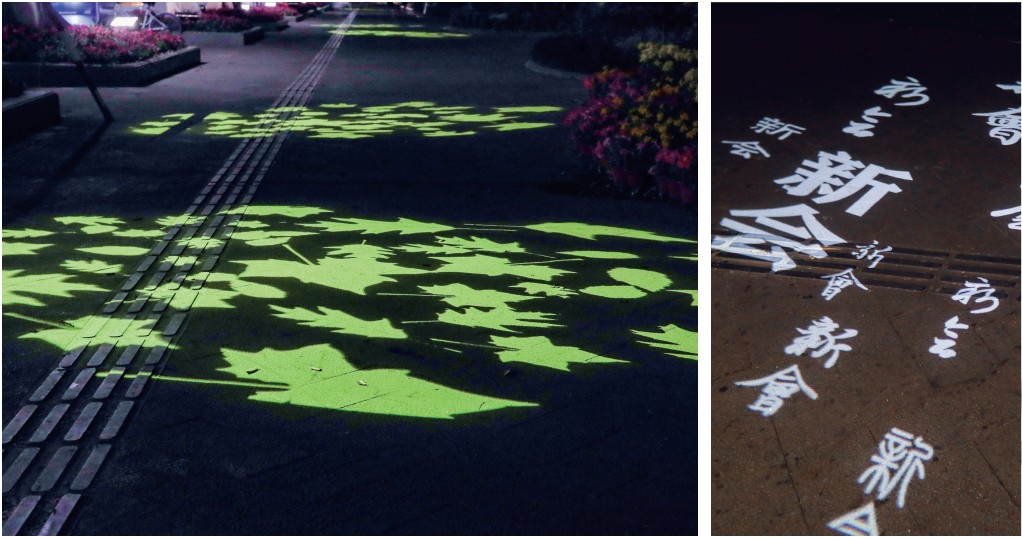

Professional for the cultural tourism market, theme park, night view of distinctive town, live-action performance, bridge piers etc



LED

Imported 200W white light group

IP Grade

IP65

CCT

7500K

Focus

Electronic

Lumen

4500lm

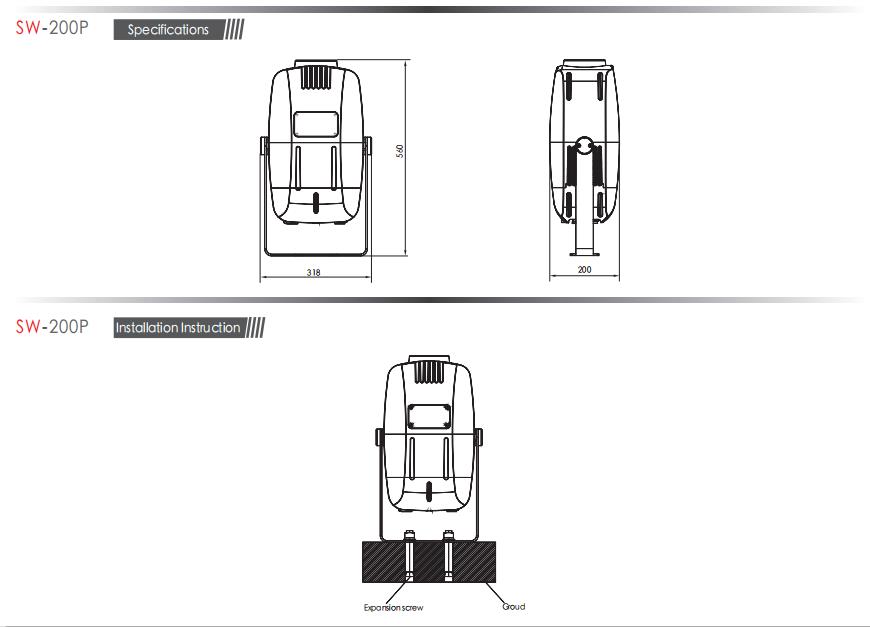

Dimensions

560x318x200mm

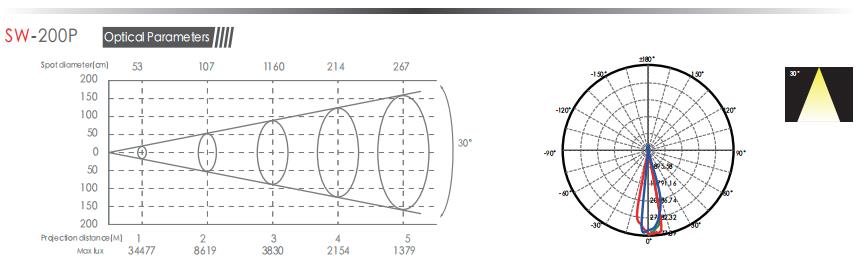

Beam angle

15°,30° ,4 5°

N.W.

11.9 KG

Input voltage

AC100-240V,50-60 Hz

Housing material

Magnesuim-aluminium alloy

Power

220W

Housing color

gray / black

Drive current

13 .5A

Power cable

black rubber cable 3 Pin In & Out

Dimming

16Bit

DMX cable

Cement black rubber cable 2 Pin In & Out

Cooling

Convection + Fan cooling

Electrical safety class

I

Control protocol

DMX512RDM

EMC

EMC, EMI

DMX channel

10CH,11 CH

Permitted Ambient Temperature

 -20 +4 5

Function

Patterns and colors create a rainbow flow effect

Color

Carmine, Green, Blue, Buff, Light blue, Sky blue, Orange-red

Fixed wheel

1(7+1 fixed gobo, gobo shake, gobo bi-directional rotation)

Prism

Four-prism



Rotation Gobo

1 (7+1 Auto-rotating Gobo, can be shaking, rotated forward and backward, Gobo can be customized)


SW-200P 1.JPG

SW-201P 1.JPG
