Projector lighting SW-201P

  • Category:Projector lighting
  • Introduction:200W outdoor waterproof LED zoom gobo light
  • Hotline: +86-20-66805884
  • Email:jenny@topledlighting.com
  • Details

  • Contact Us

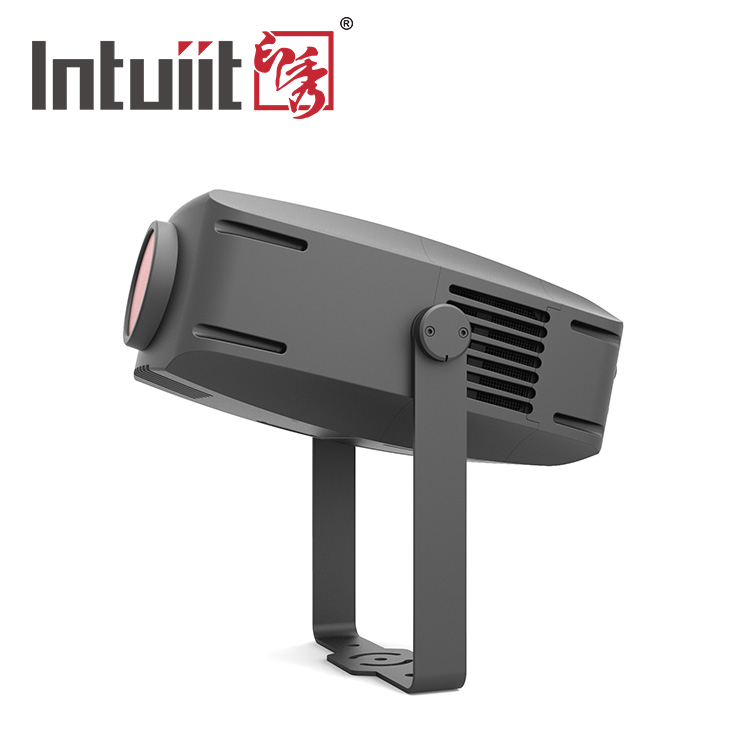

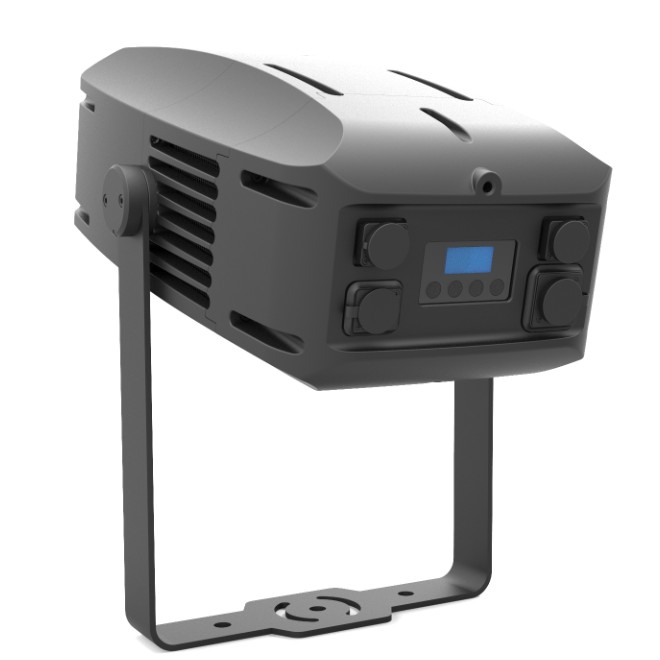

200W outdoor waterproof LED zoom gobo light

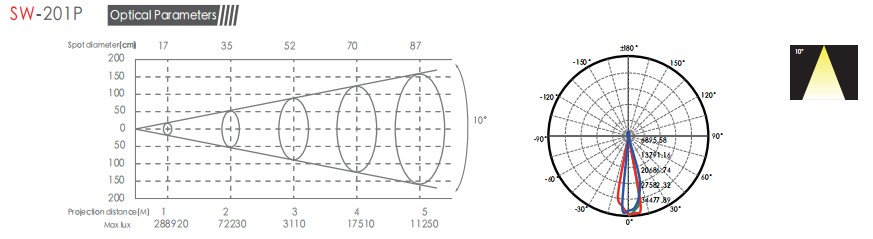

It is fitted with superior optical system. Zoom range: 10°-30° .

Color wheel with rich colors,fixed gobo wheel,rotating gobo wheel, prism, and atomization effect can be transformed easily.

Very smooth dimming gray transformation

Gobos can be switched flexibly,accurate rotation and positioning, with clear Logo image.

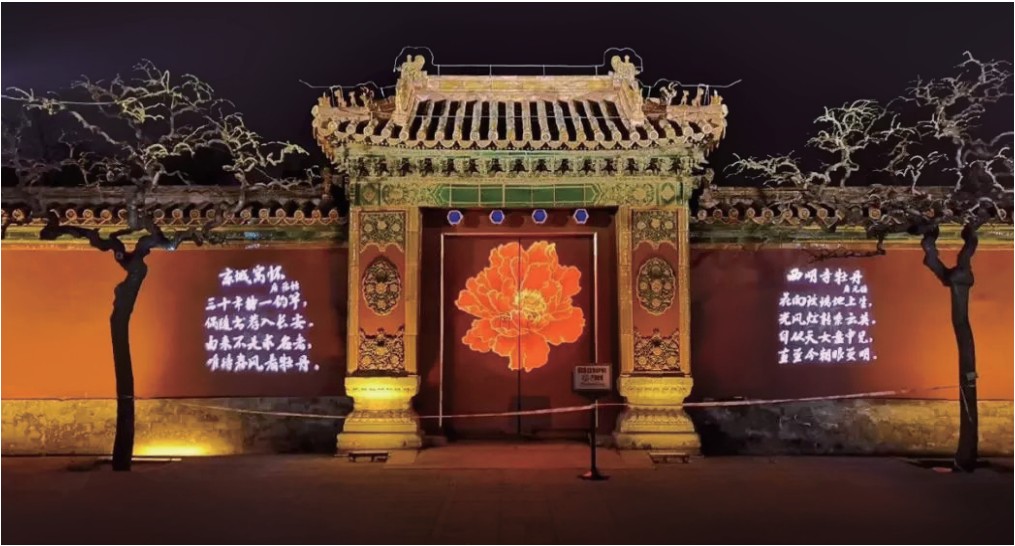

Professional for the cultural tourism market,theme park,theme town, live show,bridge piers etc.

SW-100P 7.jpg

LED

Imported 200W white light group

IP Grade

IP65

CCT

7500K

Focus

Electronic

Lumen

5880lm/7423lm

Dimensions

560x318x200mm

Beam angle

10~30°

N.W.

11.9 KG

Input voltage

AC100-240V,50-60 Hz

Housing material

Magnesuim-aluminium alloy

Power

220W

Housing color

gray / black

Drive current

13 .5A

Power cable

black rubber cable 3 Pin In & Out

Dimming

16Bit

DMX cable

Cement black rubber cable 2 Pin In & Out

Cooling

Convection + Fan cooling

Electrical safety class

I

Control protocol

DMX512RDM

EMC

EMC, EMI

DMX channel

10CH,11 CH

Permitted Ambient Temperature

 -20 +4 5

Function

Patterns and colors create a rainbow flow effect

Color

Carmine, Green, Blue, Buff, Light blue, Sky blue, Orange-red

Fixed wheel

1(7+1 fixed gobo, gobo shake, gobo bi-directional rotation)

Prism

3-prism



Rotation Gobo

1 (7+1 Auto-rotating Gobo, can be shaking, rotated forward and backward, Gobo can be customized)


SW-201P 2.JPG





SW-302P 1.JPG
