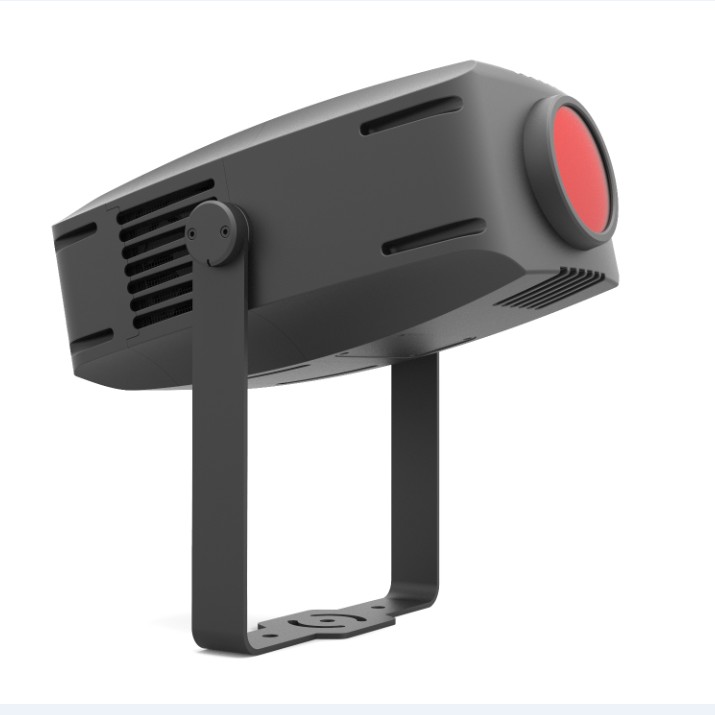

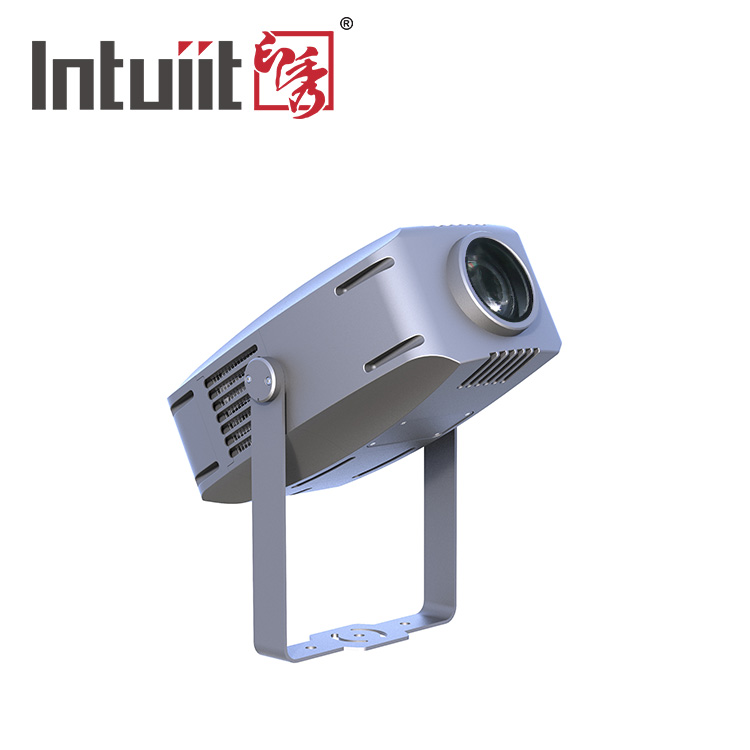

400W outdoor waterproof LED gobo light
It is fitted with superior optical system. Beam angle: 15°,30°,55°optional.
Color wheel with rich colors, fixed gobo wheel, rotating gobo wheel, prism, and atomization effect can be transformed easily.
Very smooth dimming gray transformation.
Gobos can be switched flexibly, accurate rotation and positioning, with clear Logo image

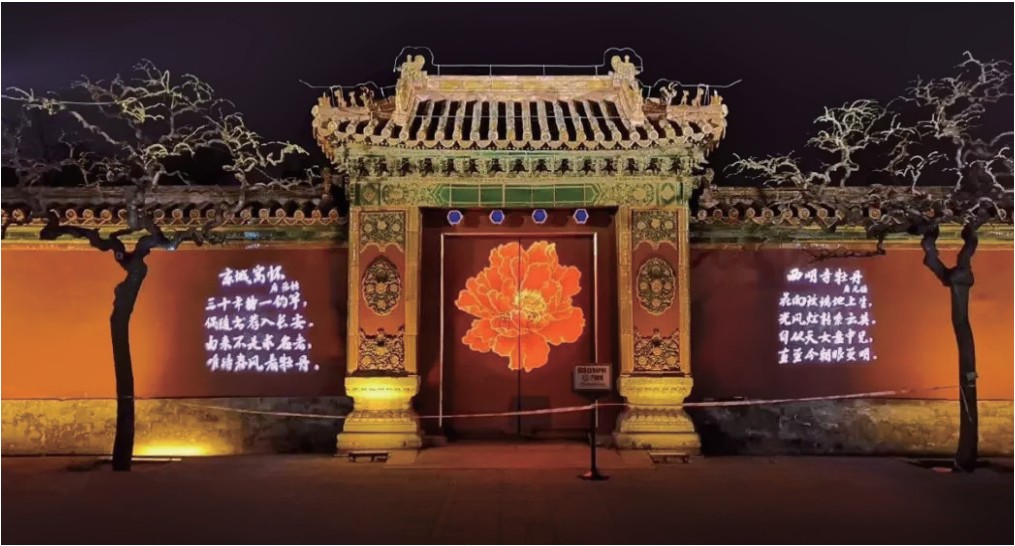

Professional for the cultural tourism market,theme park,theme town,
live show,bridge piers etc.
LED | Imported 400W white light group | IP Grade | IP65 |
CCT | 10500K | Focus | Electronic |

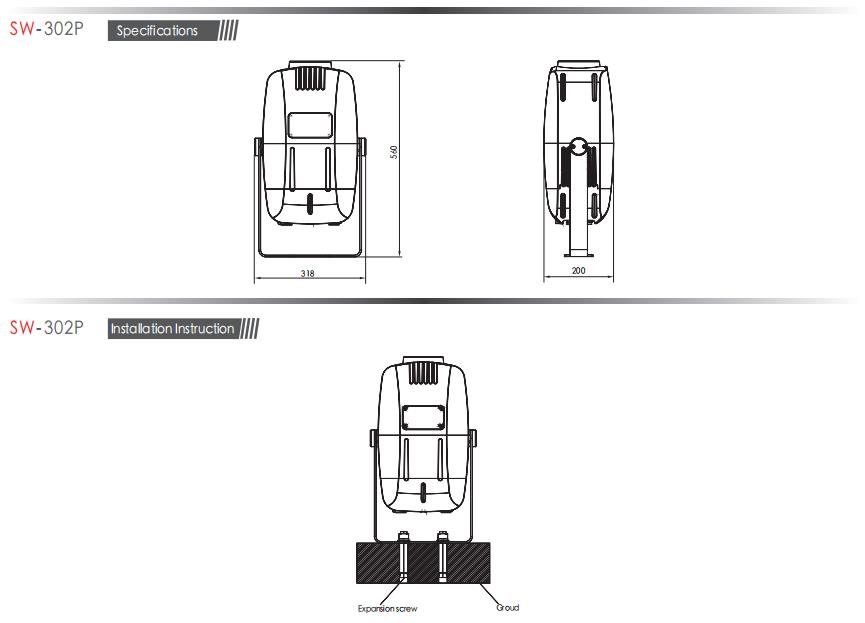

Lumen | 5880lm/7423lm | Dimensions | 560x318x200mm |

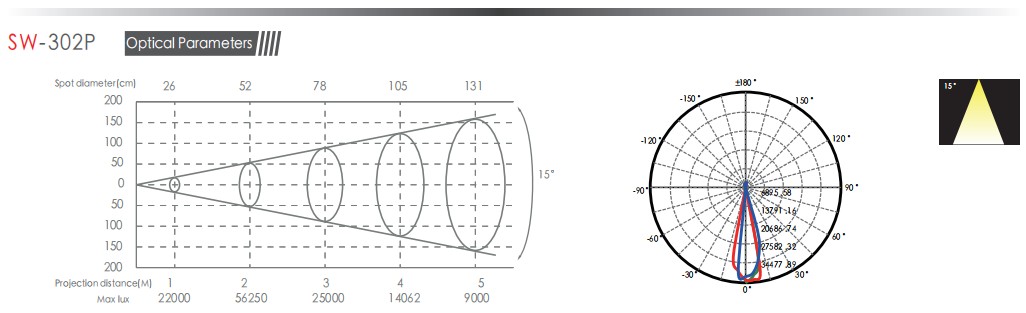

Beam angle | 1 5° ,3 0°, 5 5° | N.W. | 13.5 KG |
Input voltage | AC100-240V,50-60 Hz | Housing material | Magnesuim-aluminium alloy |
Power | 400W | Housing color | gray / black |
Drive current | 13 .5A | Power cable | black rubber cable 3 Pin In & Out |
Dimming | 16Bit | DMX cable | Cement black rubber cable 2 Pin In & Out |
Cooling | Convection + Fan cooling | Electrical safety class | I |
Control protocol | DMX512、RDM | EMC | EMC, EMI |
DMX channel | 10CH,11 CH | Permitted Ambient Temperature | -20 ~ +4 5℃ |
Function | Patterns and colors create a rainbow flow effect | Color | Carmine, Green, Blue, Buff, Light blue, Sky blue, Orange-red |
Rotation Gobo | 1 (6+1 Auto-rotating Gobo, can be shaking, rotated forward and backward, Gobo can be customized) |
Enquiry:Projector lighting SW-302P
