Smart Controller APP Control System | KZ-018

  • Category:Control System
  • Introduction:SmartController with APP function,OLED display DMX controller for led lights
  • Hotline: +86-20-66805884
  • Email:jenny@topledlighting.com
  • Details

  • Contact Us

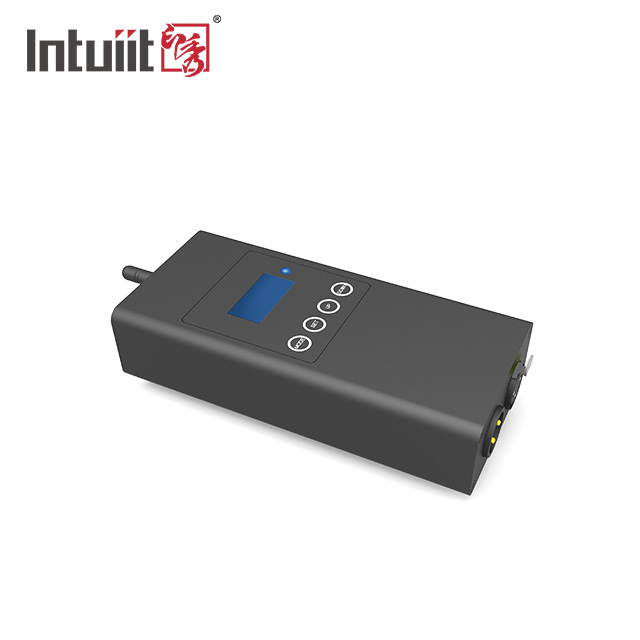

SmartController with APP function,OLED display DMX controller for led lights



KZ-018 is DMX controller suitable for all led lights.The system is composed of mobile phone software (SmartController) and controller. The main functions of the mobile phone app include lamp management, real-time control, playback control, lamp programming, effect programming, RDM basic functions, upgrading controllers and upgrading Darson lamps, code writing function, Controller parameter setting.



Specification :



App control box
Technical data
Item No.KZ-018
Work VoltageAC 100-240V, 50-60Hz
Max. Power13W
Control protocolDMX512, RDM, W-DMX, WiFi
Dimension211*78*50mm
Net Weight0.6 Kg
IP RateIP20



SmartController APP Connected Real Time DMX Control System 0



SmartController APP Connected Real Time DMX Control System 1



Main function:



App control system: Control box+App
software on mobile phone (App Name: SmartController)
◆ Fixture management
◆ Real-time control
◆ Play control
◆ Fixture programming
◆ Effect programming
◆ RDM Basic functions
◆ Controller upgrade and fixture upgrade
◆ Code writing
◆ Controller parameter setting

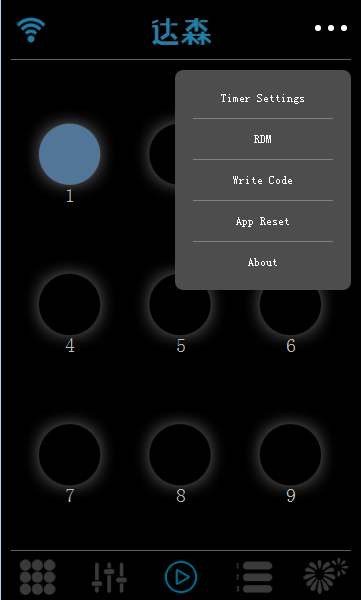

Interface Example:

SmartController APP Connected Real Time DMX Control System 2SmartController APP Connected Real Time DMX Control System 3

SmartController APP Connected Real Time DMX Control System 4SmartController APP Connected Real Time DMX Control System 5

SmartController APP Connected Real Time DMX Control System 6SmartController APP Connected Real Time DMX Control System 7

SmartController APP Connected Real Time DMX Control System 8SmartController APP Connected Real Time DMX Control System 9

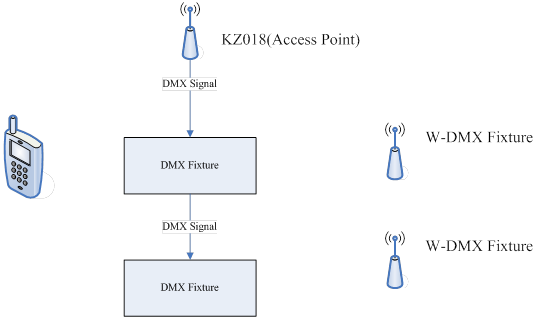

Control Mode



KZ018 as a WiFi hotspot, the control device (mobile phone) is connected to this hotspot, the dmx port of KZ018 is connected to the light or a device with a W-DMX module through a dmx signal cable.



SmartController APP Connected Real Time DMX Control System 10
