PARAMETER | |
Item No. | XY-017 |
Input Voltage Range | AC 100V-240V, 50Hz/60Hz |
Max Power | 70w |
LED | 7x10W 4-in-1 RGBW |
Beam Angle | 8 degree |
DMX Channels | 8 /11 /16 CHs |
Operation Mode | LCD display |
IP Rating | IP20 |
Control Mode | Anto running, Built-in programs, M/S, DMX512, Static color, Sound active |
N.W: | 6 KG |

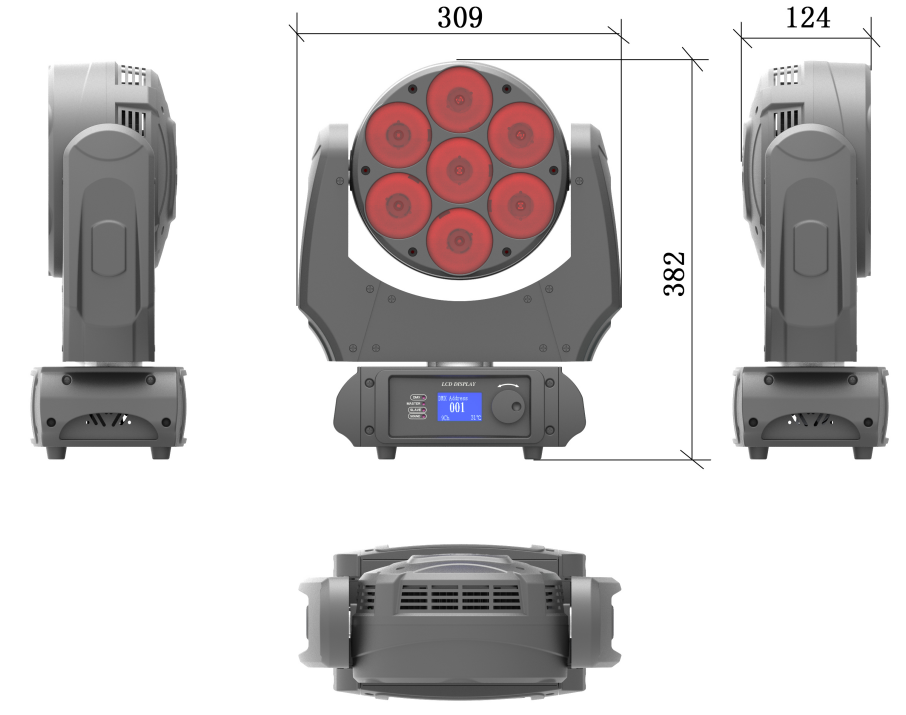

Dimension | 309X149X382 mm |

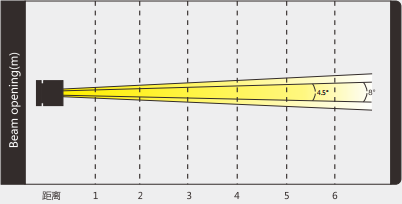

Illuminance Diagram
1m | 2m | 3m | 4m | 5m | |
R | 14810 | 7400 | 4079 | 2336 | 1644 |
G | 13550 | 8706 | 5678 | 3174 | 2107 |
B | 3410 | 2210 | 1220 | 720 | 480 |
W | 26950 | 17610 | 9300 | 5340 | 3544 |
F | 41549 | 27150 | 14690 | 8610 | 5800 |

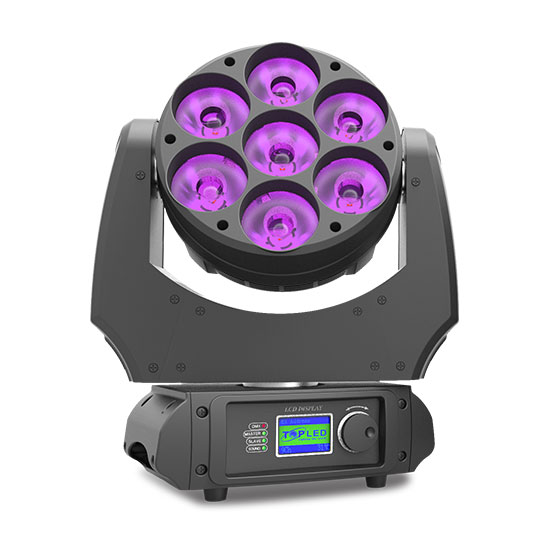

Detail image
Effect Show
Enquiry：Stage lighting XY-017
