PARAMETER | |
Item No. | XY-017B |
Input Voltage Range | AC 100V-240V, 50Hz/60Hz |
Max Power | 70w |
LED | 7x30W 4-in-1 RGBW |
Beam Angle | 4.5 degree |
DMX Channels | 8 /12 /44 CHs |
Operation Mode | LCD display |
IP Rating | IP20 |
Control Mode | Anto running, Built-in programs, M/S, DMX512, Static color, Sound active |
N.W: | 7.6 KG |
Dimension | 309X124X382 mm |

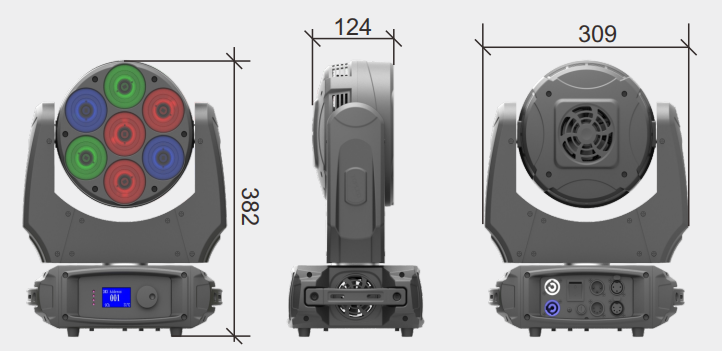

Product Size
Illuminance Diagram
1m | 2m | 3m | 4m | 5m | |
R | 16870 | 8920 | 5610 | 3793 | 2634 |
G | 36540 | 20850 | 12690 | 8645 | 6003 |
B | 6603 | 3680 | 2230 | 1500 | 1041 |
W | 47730 | 26600 | 16120 | 10820 | 7513 |
F | 93326 | 52001 | 31520 | 21220 | 14736 |

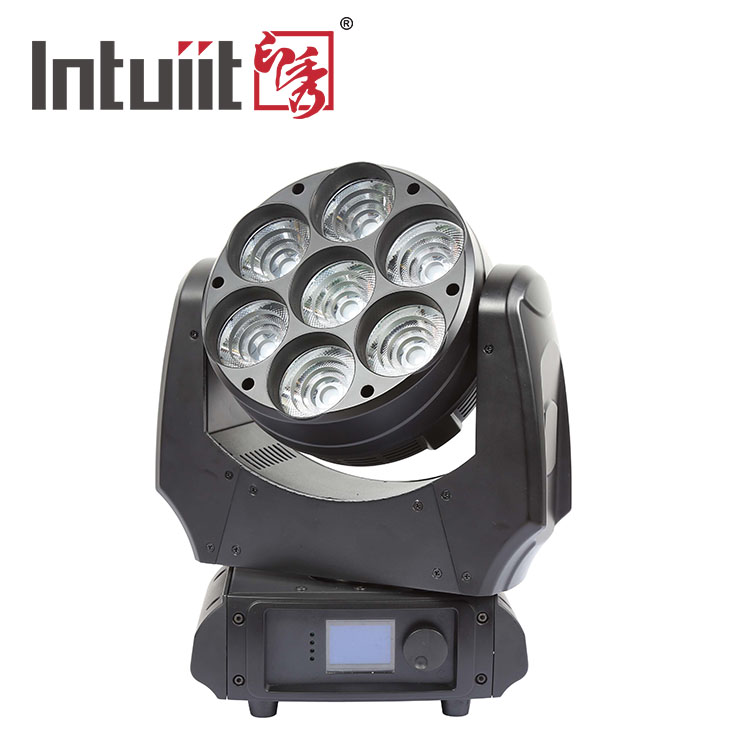

Detail image
Effect Show
Enquiry：Stage lighting XY-017B
