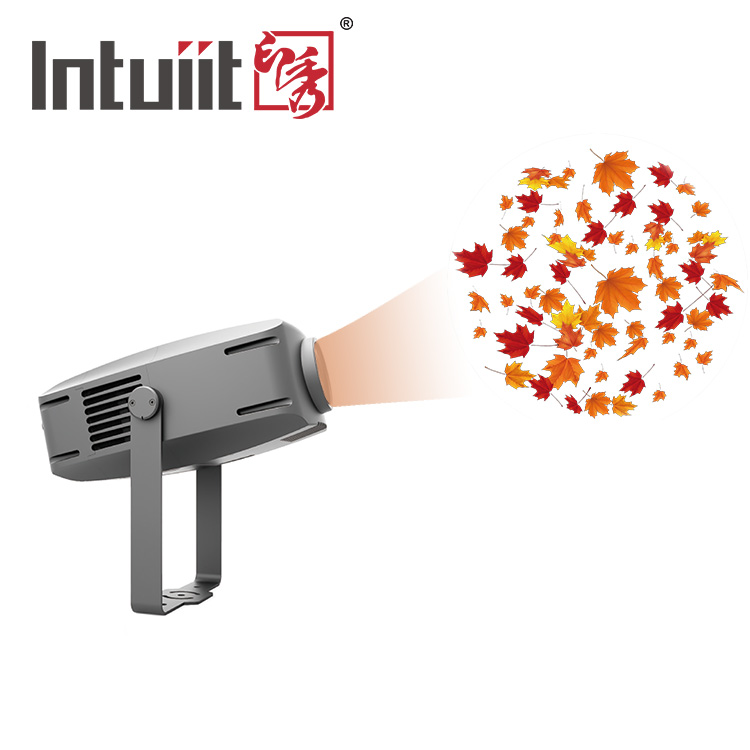

400W outdoor waterproof led zoom customized gobo light LED effect lights image projection
Imager HD 400 is an innovative waterproof projection lighting under independent research and development, with compact structure and attractive appearance.

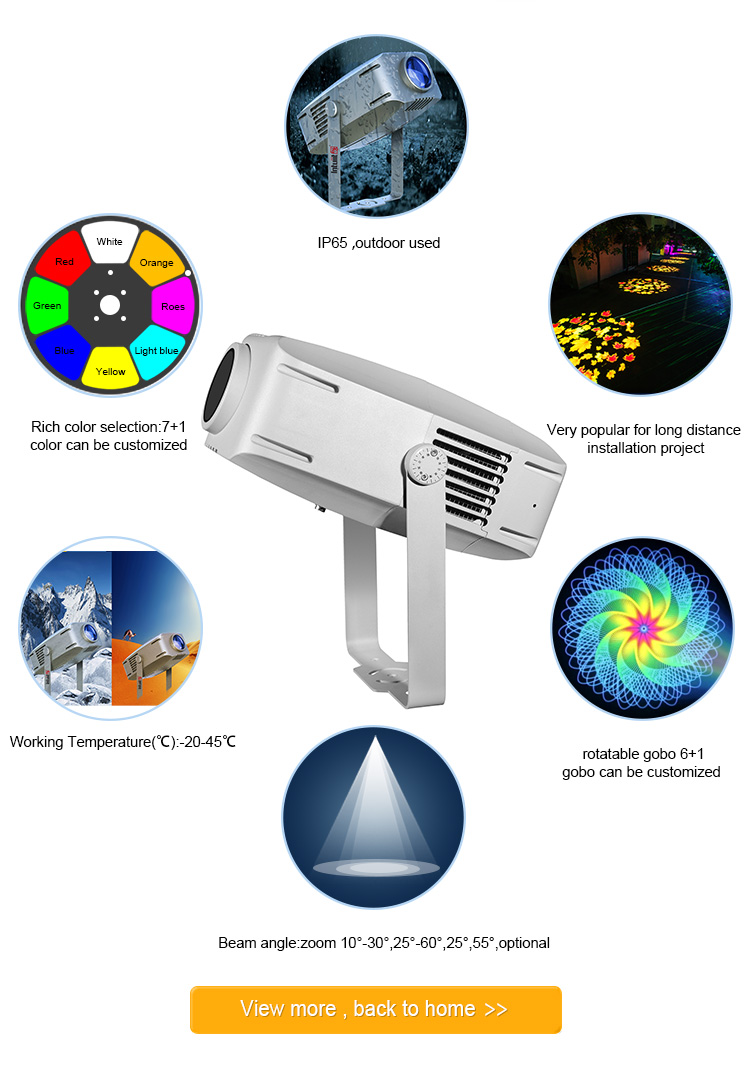

With pure white color temperature, it is equipped with intelligent zoom electronic system; 10-30 ° or 20-60° can be linearly adjusted. Focusing smoothly, and precisely in control. Built-in rotatable Gobo wheel, prism and other functions, SW-201P can achieve a wealth of dynamic pattern simulation effect. Equipped with an excellent optical system, the light spot is uniform with clear-cut margin, and the pattern image is valid.

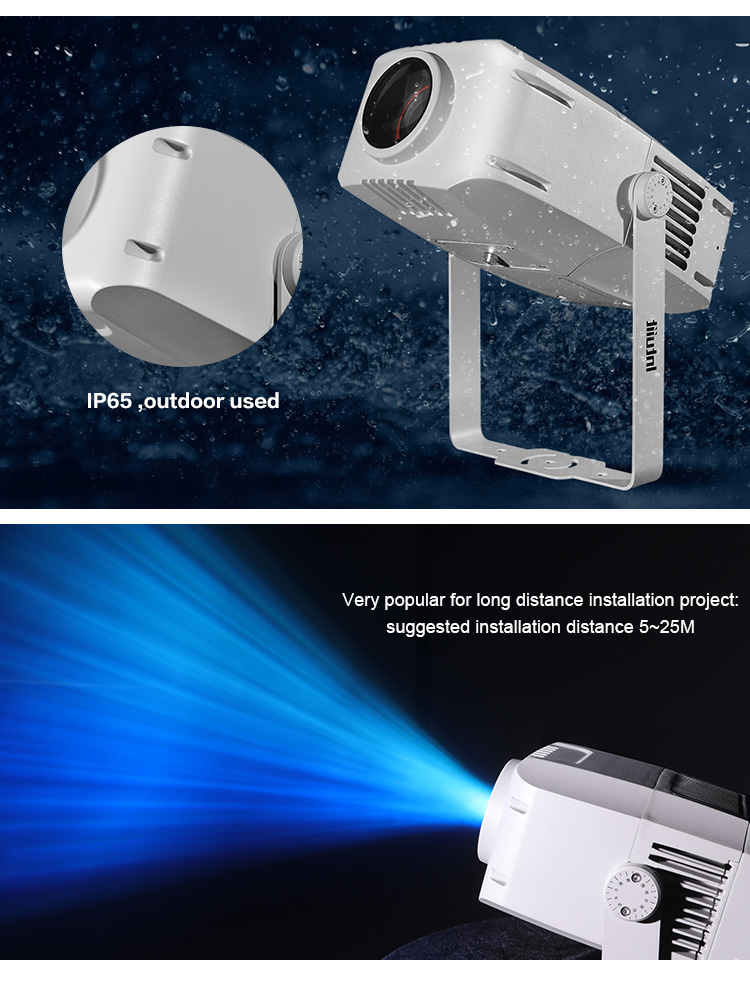

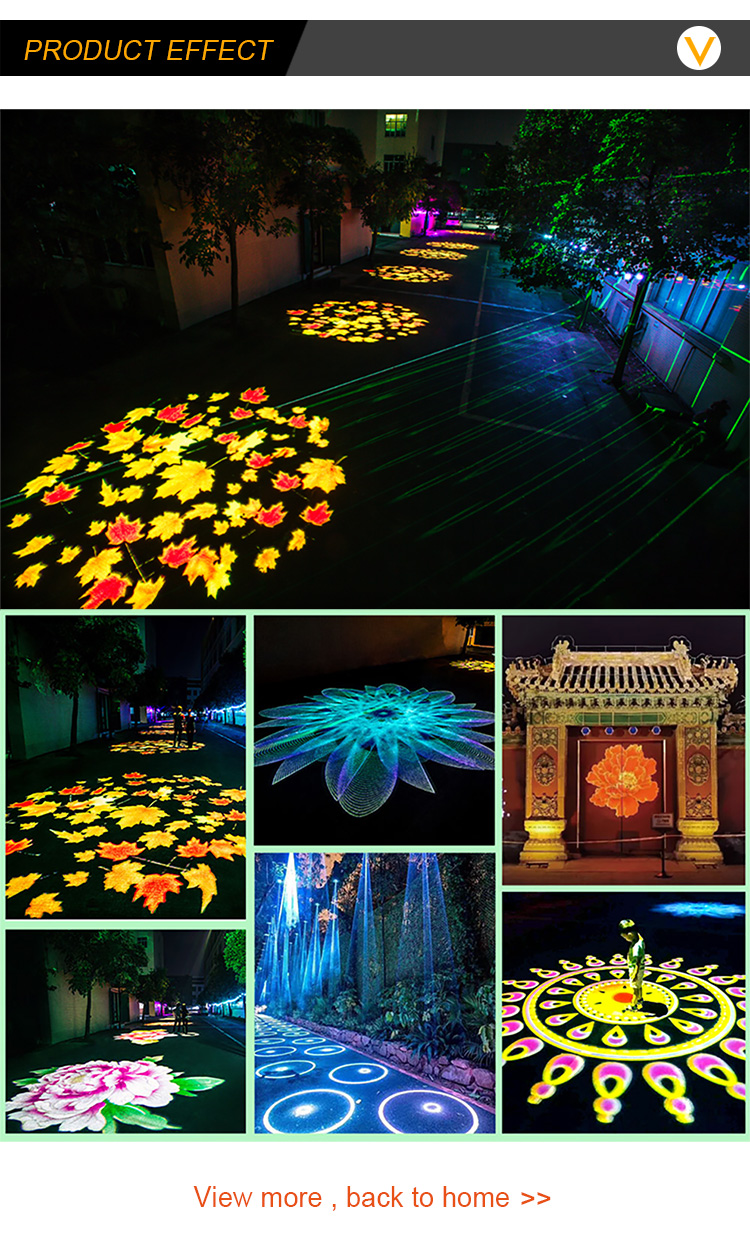

The product is IP65 waterproof rating, which is widely used in theme parks, playgrounds, Commercial complex, commercial plazas, architectural buildings, outdoor performances and other large and medium-sized venues.
Specification
Product Name | 400W Outdoor Gobo projector zoom | ||
Item Number | SW-303P | ||

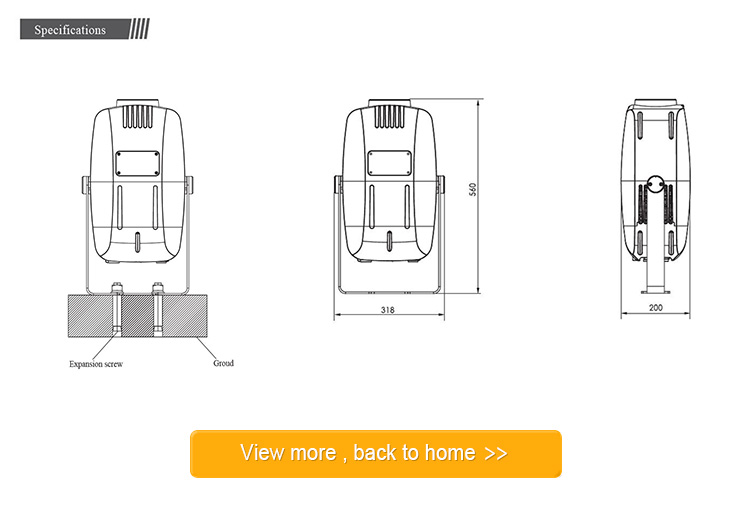

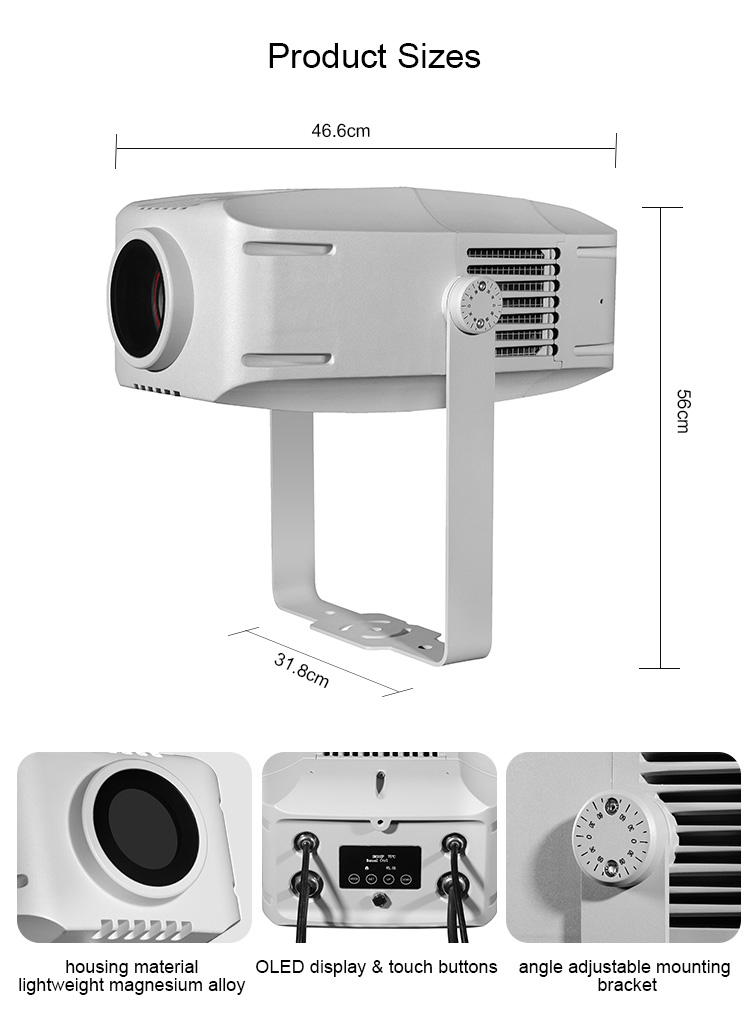

Product Measurement | 516*318*200MM | ||
Inner Packing Size | 685*440*315MM | ||
Packing Quantity | 1pc/Carton | ||
N.W./G.W. | 13.5KG/14.8KG | ||
Housing Material/Color | Die casting Magnesium Alloy/Matt Black | ||
Device Linking | DMX in/out(3 pin),power in/out | ||
Rotating gobo | 6+1 | CCT | 7500K |
Power Factor | 0.939 | Focus, prism | |
Input Current | 2.315A @100V | 1.06A @240V | |
Power line System | European/American | 3PCS @100V | 6 PCS @240V |

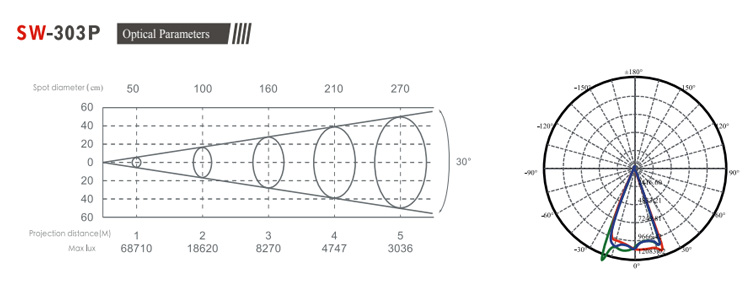

Beam Angle(Optional) | 10°-30°,25°-60° | ||
Data Protocol | DMX512. RDM | ||
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a nationak high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
Enquiry：Waterproof Gobo Zoom LED Decorative Projector Lights │ SW-303P
